Description:

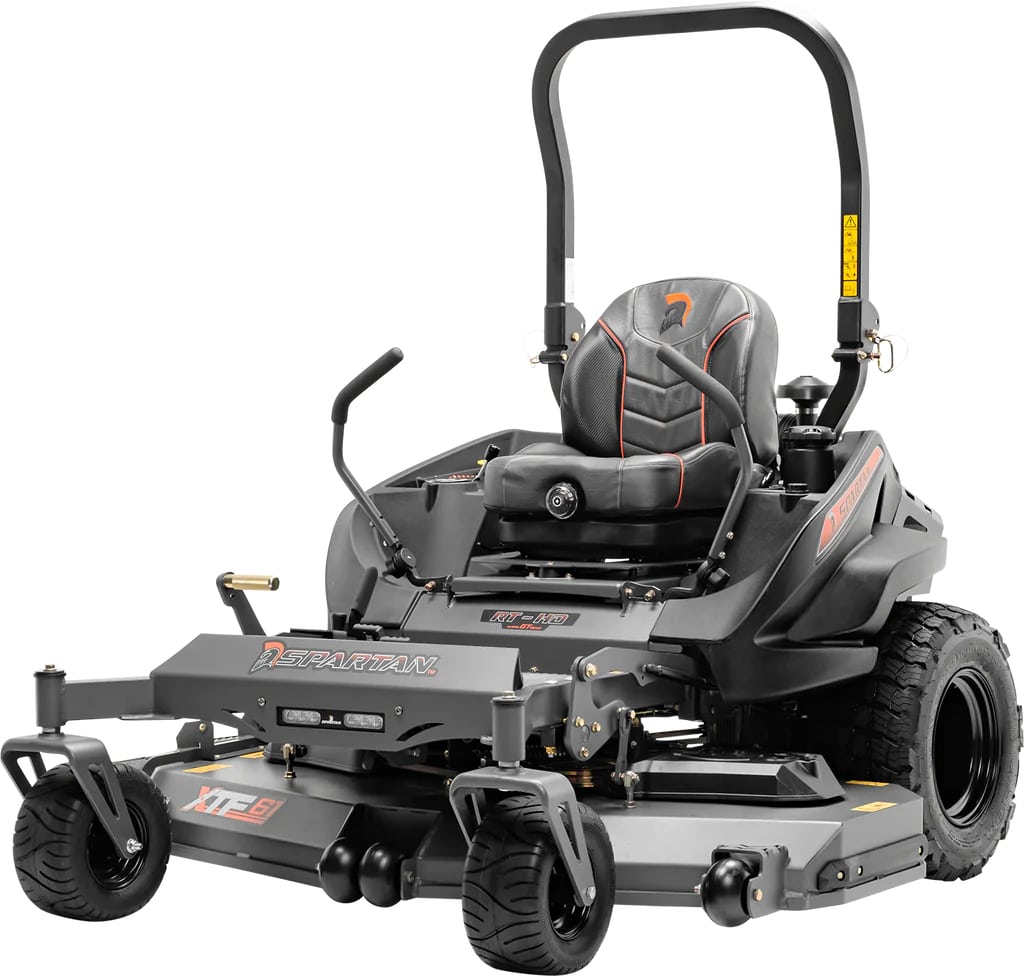

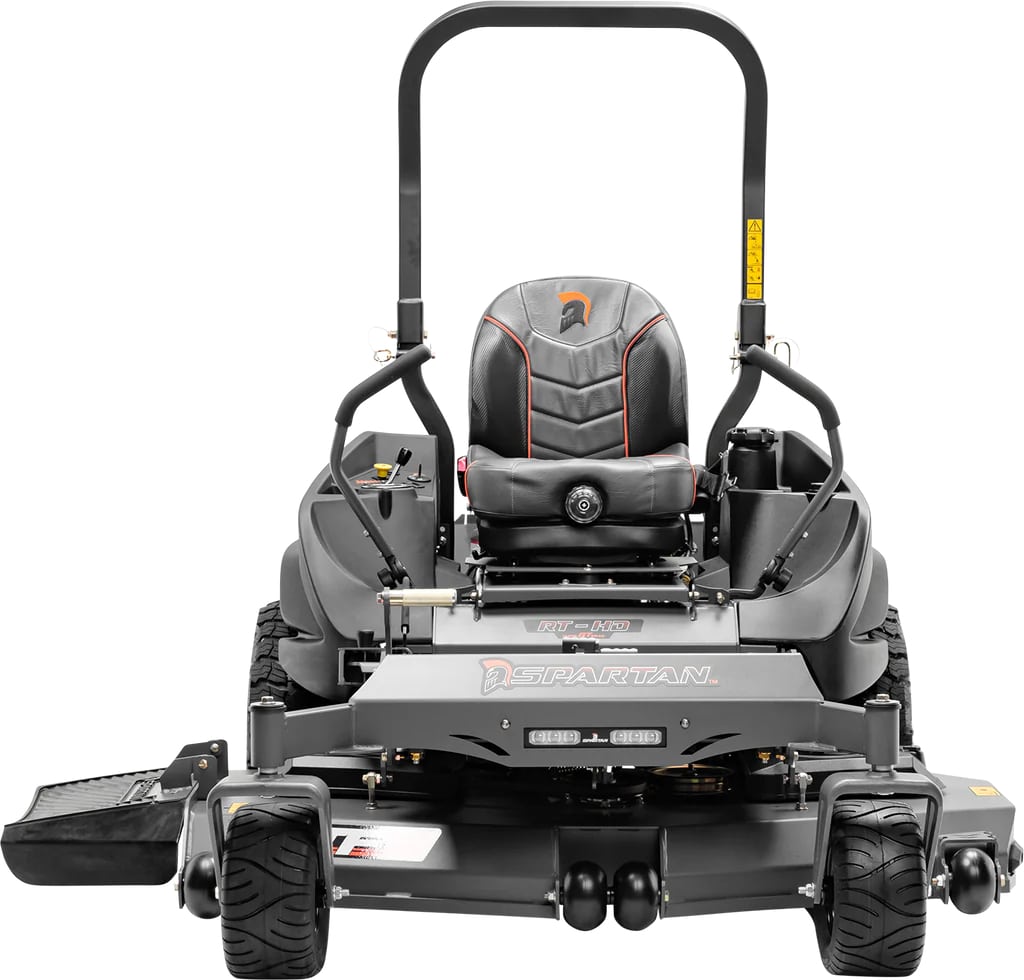

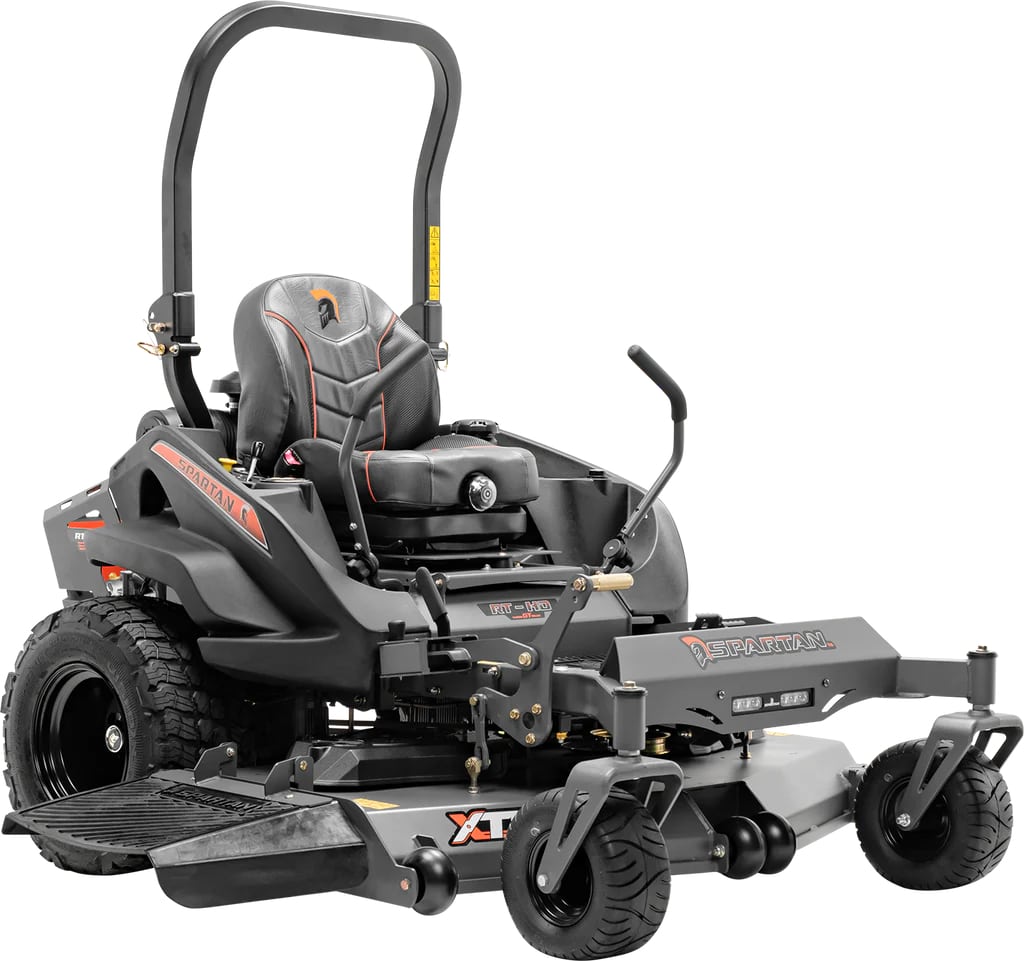

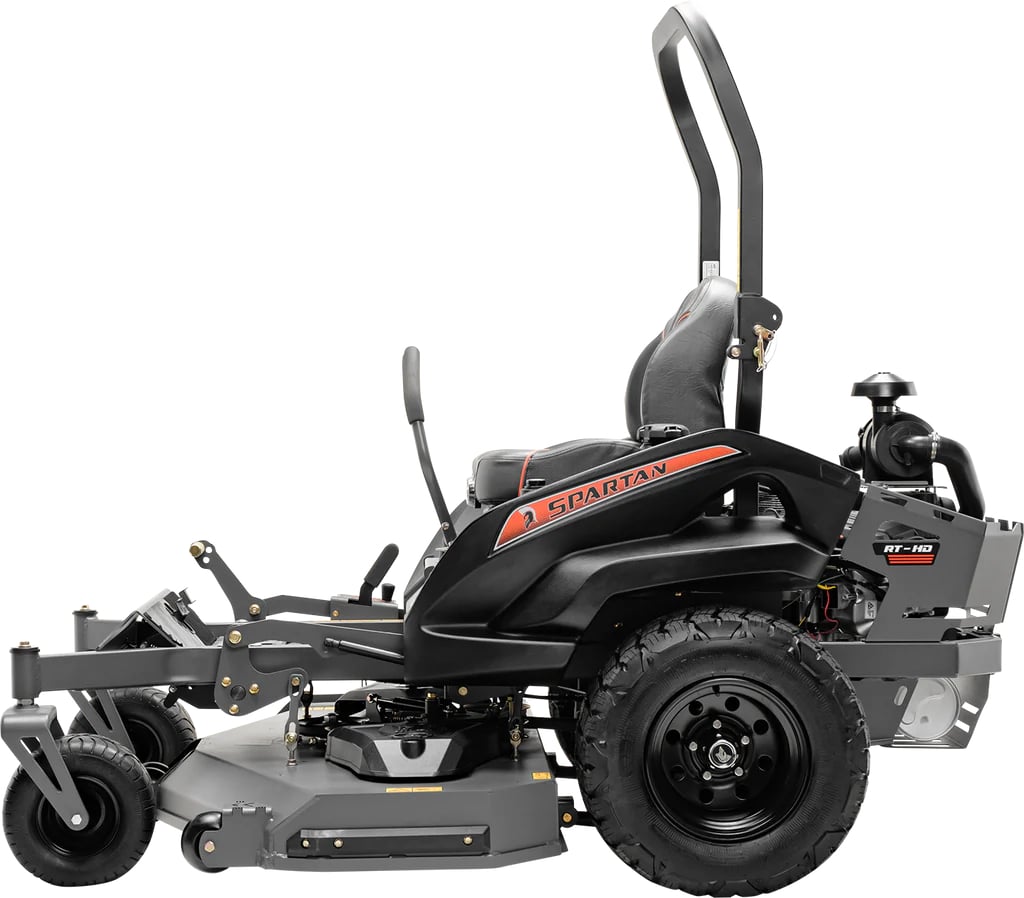

The Spartan RT-HD is built for those who demand commercial-grade durability, power, and precision. Designed for large properties and demanding terrain, the RT-HD offers superior comfort, enhanced stability, and professional-level performance. With premium components, a reinforced frame, and advanced cutting technology, this mower is ready to tackle the toughest jobs with ease.

Features:

• Heavy-Duty Frame – Built with a 1 1/2" x 3" tubular welded frame, ensuring maximum durability and stability.
• Commercial-Grade Transmission – Equipped with Parker HTJ 12cc transaxles, providing smooth and powerful performance.
• Premium Comfort – Features an ultra-premium adjustable suspension seat with a 360-degree floating seat platform, designed for long-lasting comfort during extended mowing sessions.
• High-Speed Blade Performance – With a blade tip speed of 18,500 FPM, the RT-HD ensures precise, professional-quality cuts every time.
• Advanced XTF Deck System – The 6” deep, 7-gauge steel deck is engineered for exceptional airflow, strength, and cutting efficiency.
• GT Trac Stability & Traction – Designed for enhanced traction and balance, providing superior control on uneven terrain.
• Convenient Operator Controls – Features magnetic pin height adjustment, foot-operated deck lift, and a user-friendly control panel for effortless operation.
• Extended Fuel Capacity – A 9.5-gallon fuel tank allows for longer mowing sessions with fewer stops.
• LED Light Bar – A full-beam LED lighting system improves visibility for early morning or late evening mowing.

Specifications:

Engine

• Engine Name: Kawasaki® FX1000
• Horsepower: 35 HP
• Fuel Capacity: 9.5 Gallons
• Fuel Type: Gasoline

Drive Line

• Hydraulic Drive: Parker HTJ Transaxles – 12cc Drive Motors
• Hydraulic Torque:
• Continuous Torque: 262 ft-lb
• Maximum Torque: 406 ft-lb
• Hydraulic Drive Maintenance Interval: 1000 hours
• Front Tires: 13x6.5-R6 Radial (Optional Tweels or Flat-Free Available)
• Drive Tires (Rear): 24x12-R12 Radial
• Wheel Type: Steel
• Forward Speed: Up to 11 mph
• Reverse Speed: Up to 5 mph

Cutting Deck

• Deck Size: 61”
• Deck Depth: 6"
• Deck Construction: Reinforced 7-Gauge Full-Floating Fabricated Deck
• Deck Lift: Foot Operated with Shock Assist
• Deck Height Adjustment: Magnetic Pin Height Adjust
• Cut Height Range: 1" to 5" (15 cutting positions)
• Blade Spindles: Cast Aluminum, No Maintenance, Sealed Bearings
• Parking Brake: Foot Operated

Features

• Acreage Capability: 4+ Acres
• Seat:
• Full Suspension Seat
• Adjustable TecsPak® Elastomer Supports
• 360° Floating Seat Platform
• Steering Levers: Soft-Touch Knobs (Forward/Back & Up/Down Adjustable)
• Ignition: Key Switch
• Auxiliary Power: 12V Outlet (Located Near Phone Holder)
• Storage:
• Phone Holder
• Cup Holder
• Deep Storage Tray
• Hitch: 2” Rear Receiver (Standard)

Frame

• Type: 1.5" x 3" Powder-Coated Fusion-Bonded Solid Steel Bridge Frame

Measurements

• Width: 62.5”
• Length: 84”
• Height:
• 75" with ROPS Up
• 54" with ROPS Down
• Weight (61” Deck): 1,138 lbs
