Description:

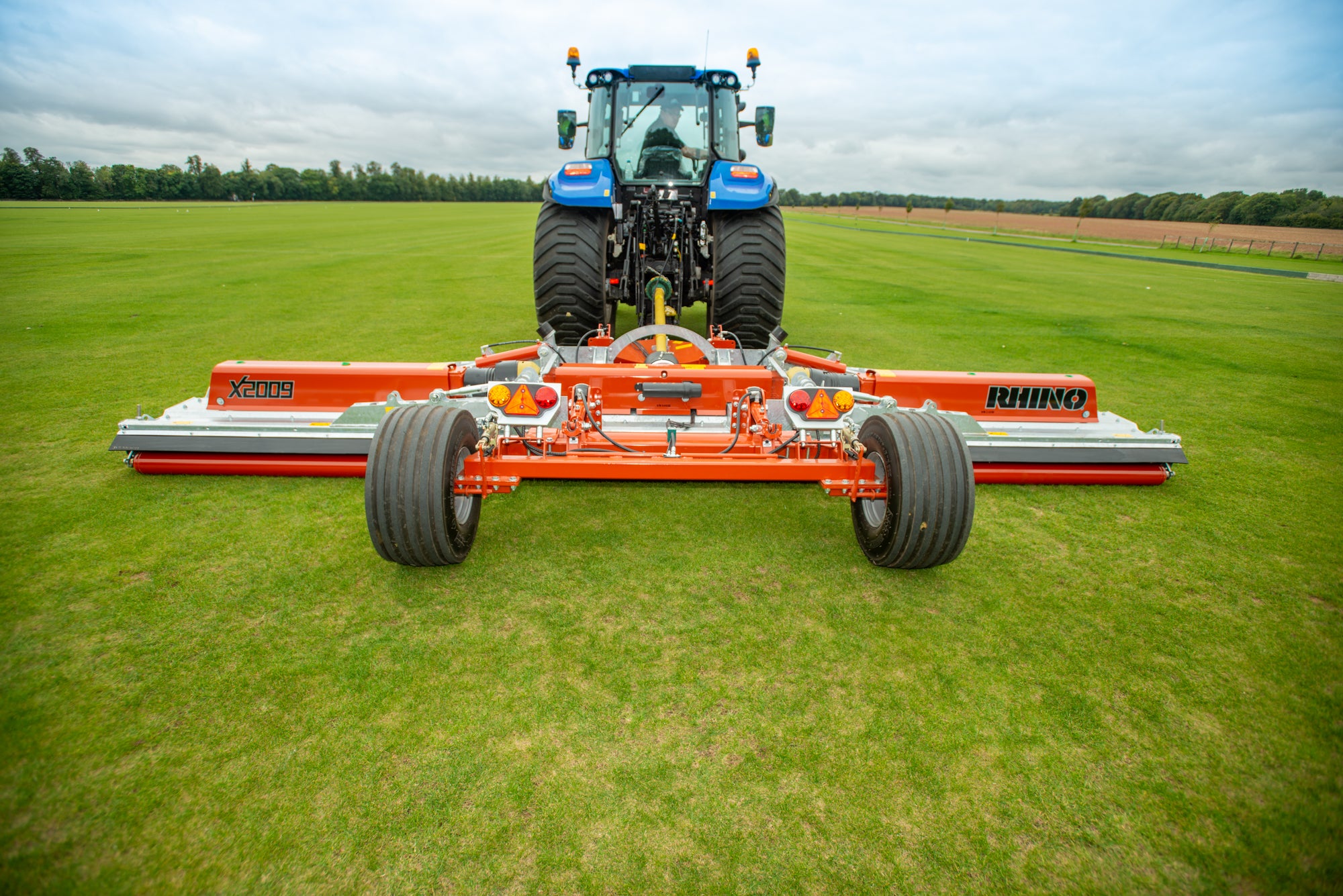

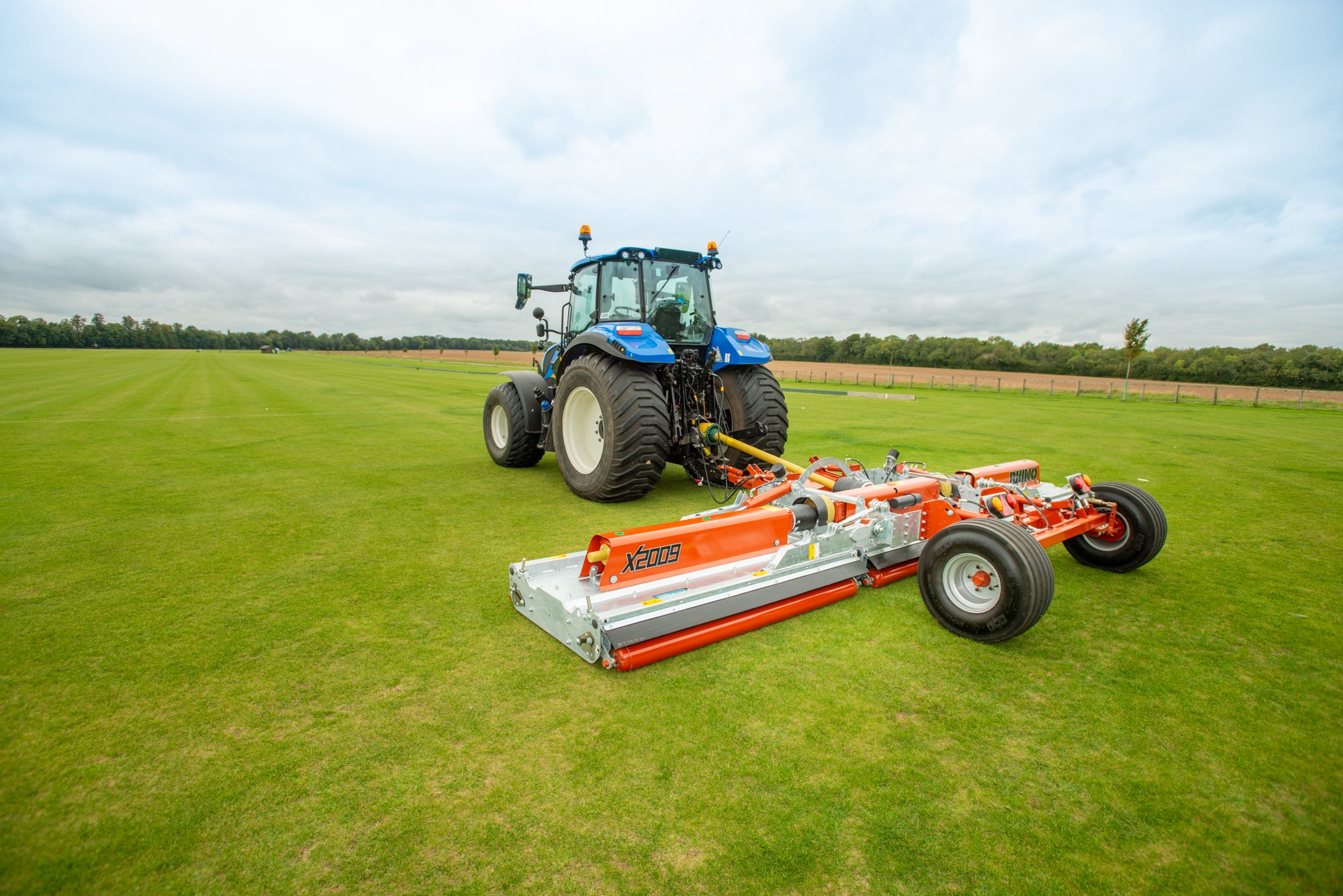

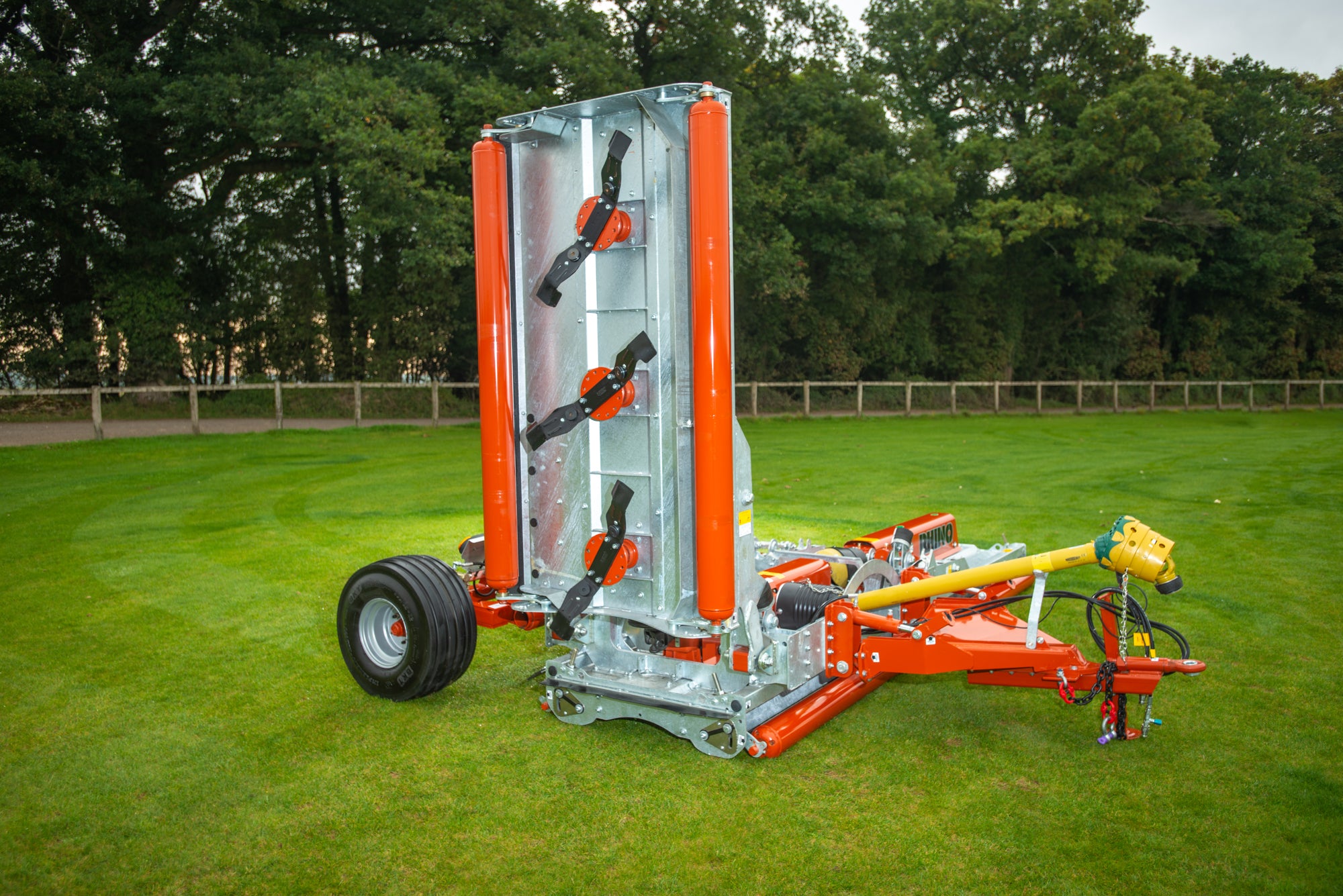

Designed for tractors with 50 to 150 PTO HP, the all-new X Series of roller mowers is designed to meet—and exceed—the requirements of maintaining vast areas of grass for contractors, turf farms, and local authorities.

100% gear-driven and built with high-performance Strenx® steel for years of dependable performance, RhinoAg X Series roller mowers are light and strong. They’re finished off with hot-dipped galvanization to ensure they’ll outlast the competition and retain their value.

Features:

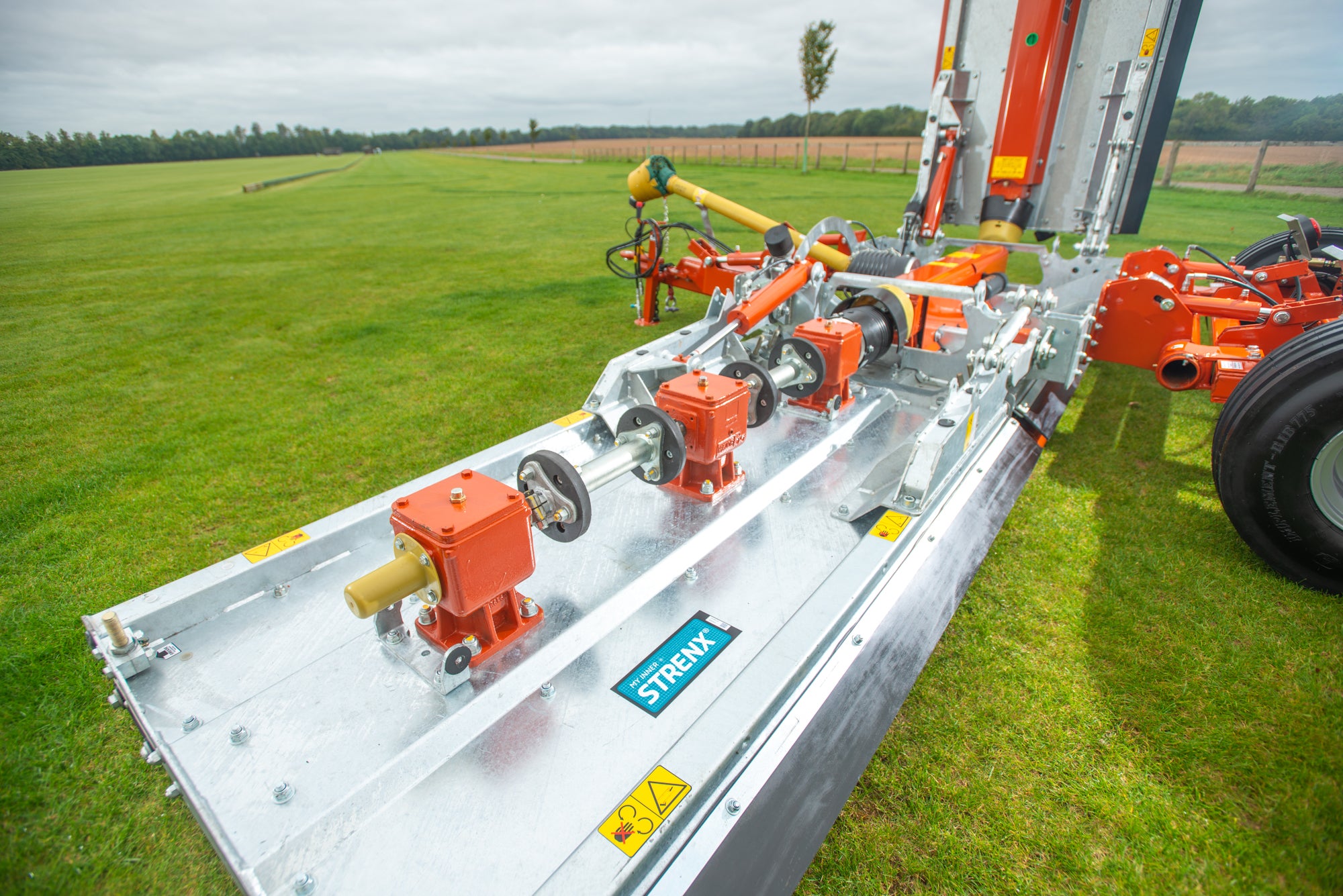

• 100% gear driven - no belts
• 8-gauge Strenx® 700 MC structural steel body and underside trough
• Simple cutting height adjustment from ½” to 5” for versatile mowing

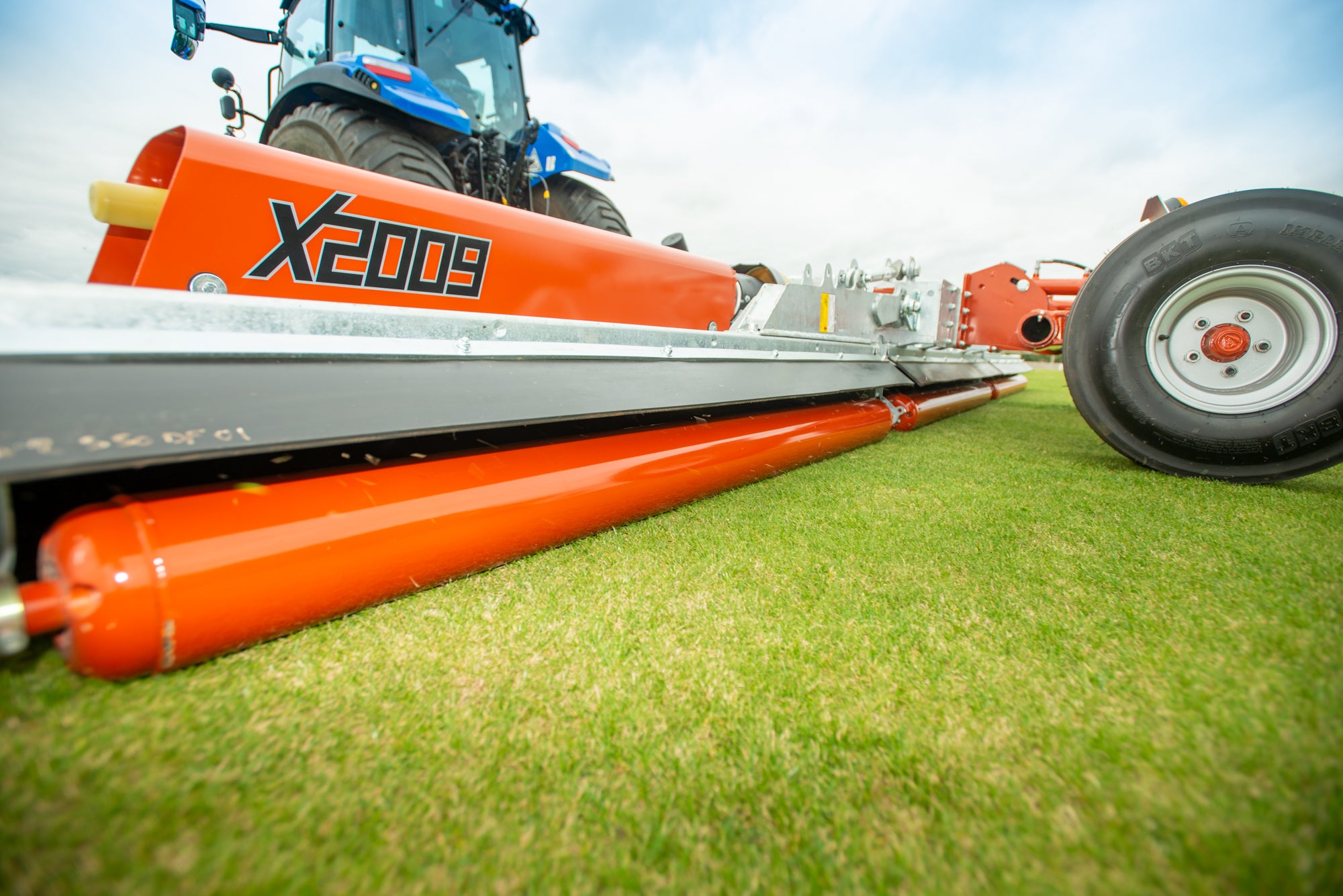

• Full-length rollers that follow ground contour to prevent scalping and produce perfect stripes
• Long-lasting sprung steel blades for hours of continuous work without needing to sharpen
• Sealed internal roller bearings for total protection against moisture, soil, and debris
• Compact transport widths for increased accessibility

Specifications:

Dimensions

• Cutting Width: 24' (288")
• Transport Width: 102"
• Overall Width: 293"
• Transport Height: 142-3/4"
• Overall Length: 144"
• Cutting Height: Up to 4 1/2"

Construction

• Hitch Type: Pull-Type
• Blade Carrier: 3¼” x 3/8” spring steel, hardened and tempered
• Number of Blades: 22
• Blade Specs: 3” x 1/4” spring steel, ground-edged, hardened and tempered
• Blade Pivot: High tensile pivot bush assembly
• Blade Overlap: 2 1/2"
• Rotars: 11

Performance

• Mowing Rate: 20 acres/hour @ 7 mph
• PTO Horsepower Required: 105 hp
• Tractor PTO: 1,000 RPM
• Output Shaft Diameter: 1½” (40 mm)
• Blade Tip Speed: 14,764 FPM

Drive & Build

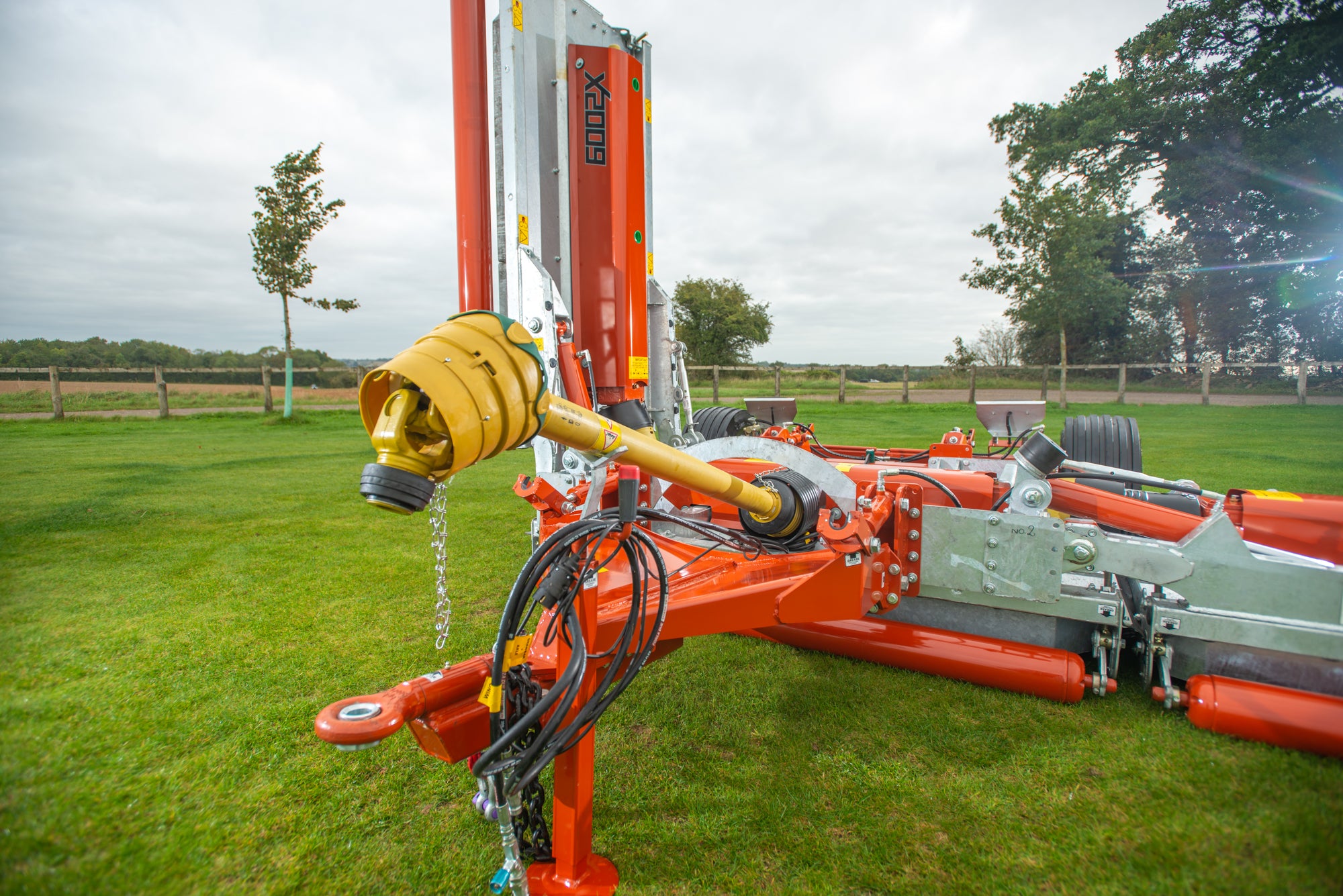

• Driveline: 1,000 RPM – 1 3/8” 21-spline V60 wide-angle shaft with shearbolt
• Gearbox Oil: 85W-140 (factory filled)
• Deck Thickness: 8-gauge Strenx® 700MC structural steel with reinforced underside trough (also 8-gauge)

Other Features

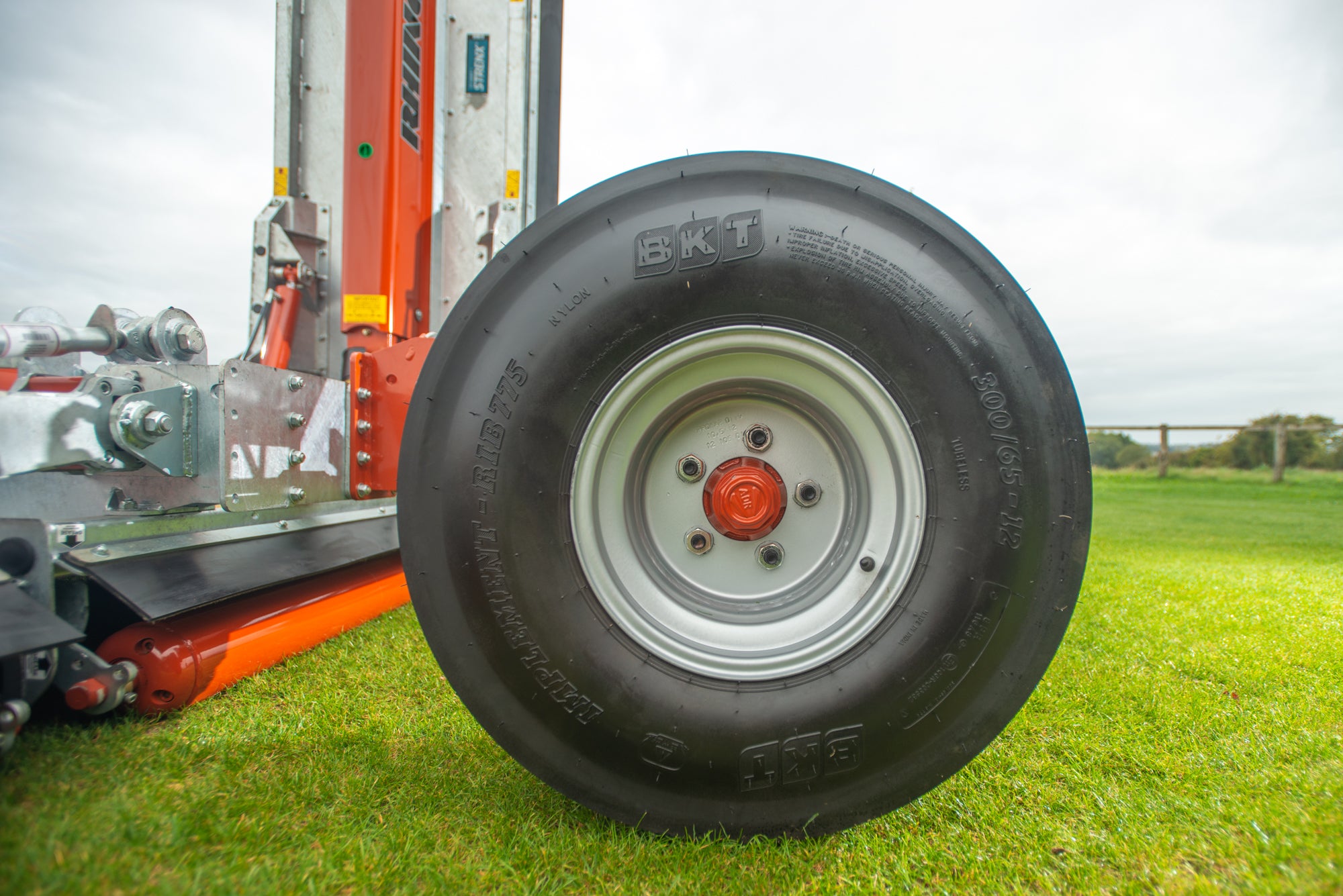

• Tires: 300/65/12 (8-ply rating)
• LED Light Kit: Standard
• Weight (Approx.): 5,000 lbs
