Description:

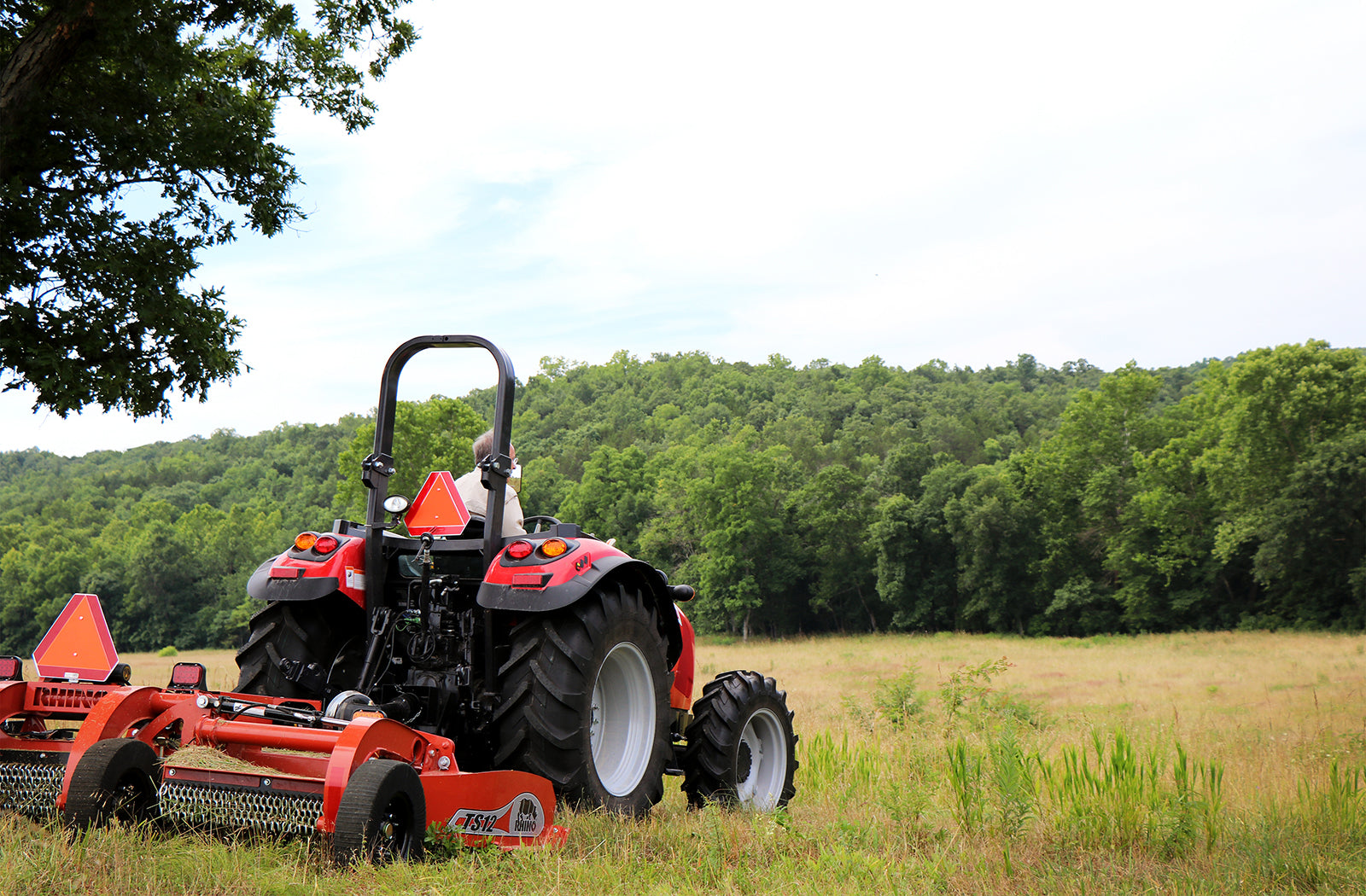

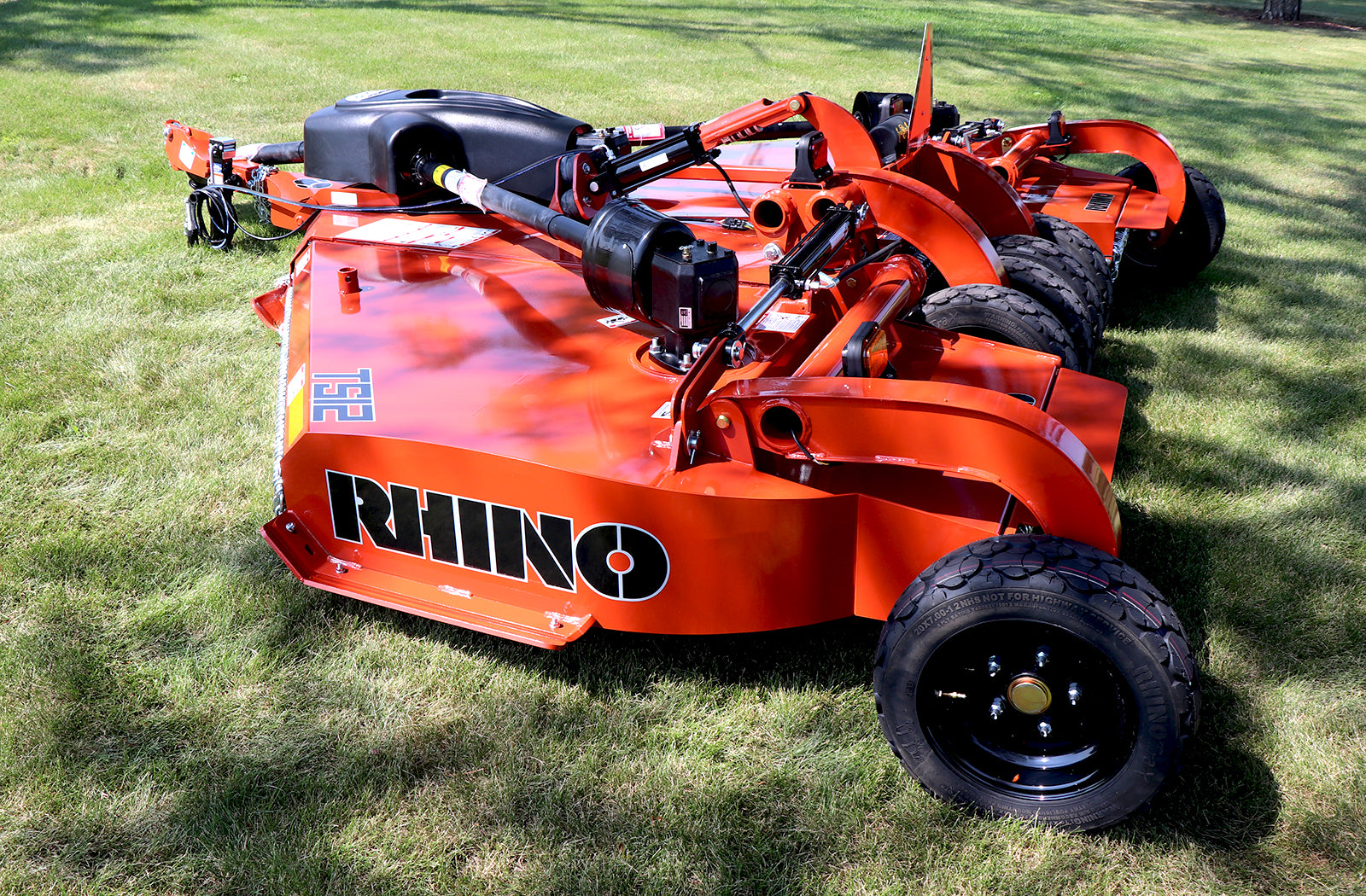

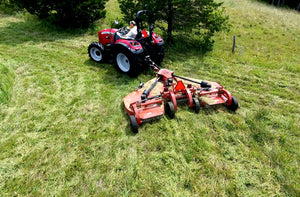

The TS12 Stealth features an exclusive close-coupled design for low tongue weight and shorter turning radius, targeting tractors in the 35-50 PTO horsepower class.

Designed specifically for customers with smaller tractors, this machine’s unique ‘stealth’ appearance, its very short wheel base, and its anti-scalp features make this the ideal machine for customers who need a flex-wing cutter’s versatility but may not have a tractor large enough to pull a 15 foot unit. The TS12 offers a full 12' cutting width, 1 1/2" cutting capacity, and is designed for 540 RPM PTO tractors.

Features:

• Designed for Tractors with 35 - 50 PTO HP.
• Short Turning Radius for Cutting Small Areas.
• 1-1/2” Cutting Capacity.
• Low Tongue Weight for Smaller Horsepower Tractors.
• Unique “Wing-Bar” Blade Carrier Protects the Gearbox Output Shaft with Minimal Weight.
• Equal-Angle, Fully Pivoting Tongue and Direct Acting Suspension System for Uneven Terrain.
• Smooth Decks for Easy Cleaning and Unobstructed Underside for Airflow Through the High-Volume Cutting Chamber.
• Provides Dramatic Reduction in Mowing Time.
• Large Center Skid Shoes and Tapered Wing Shoes Provide Anti-Scalping Protection.

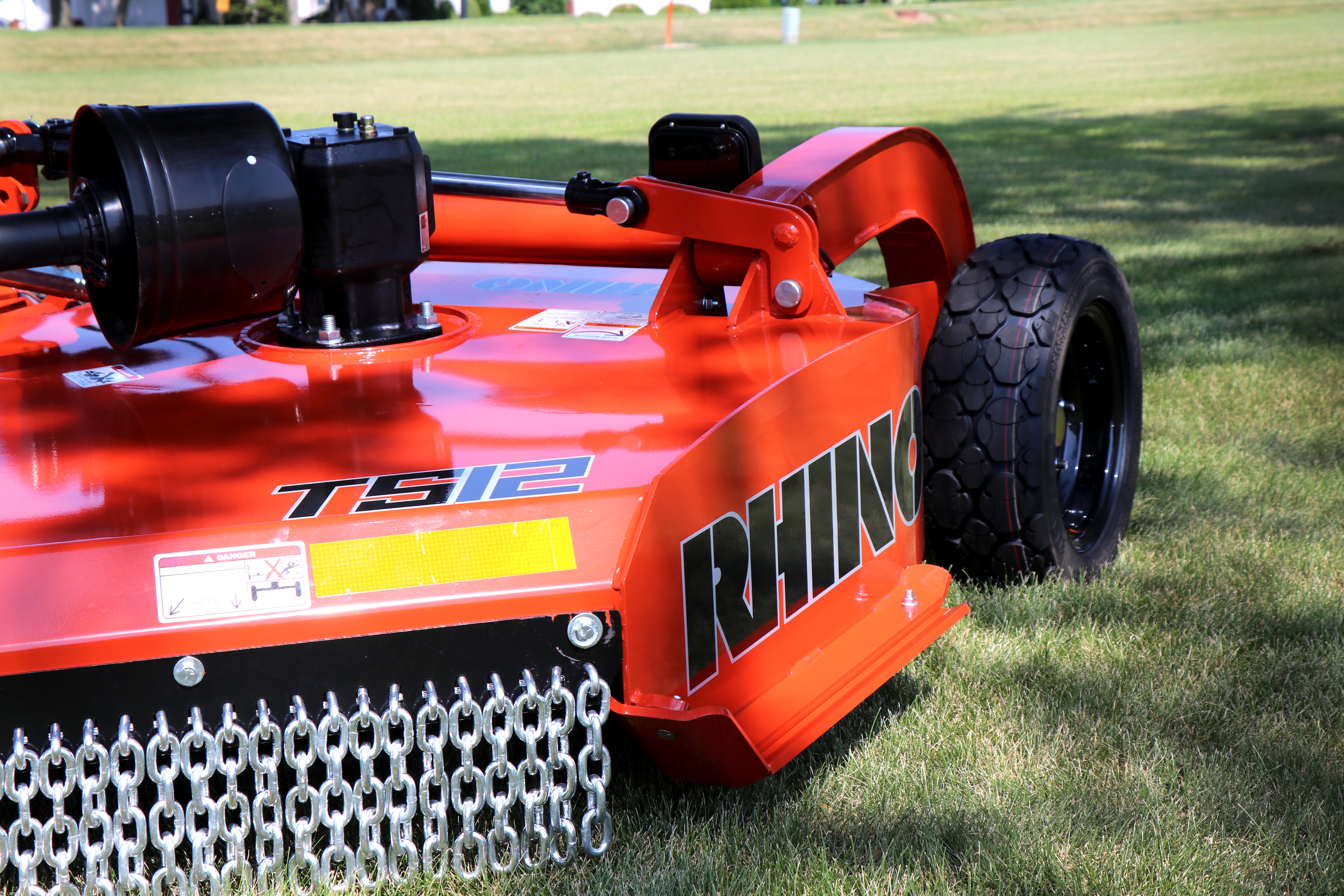

• Chain Guards Included for Protection.

Specifications:

• Cutting Width: 144" (12 ft)
• Transport Width: 97"
• Transport Height: 65"
• Overall Width: 155"
• Overall Length: 148"
• Cutting Height Range: 2" – 12" (Hydraulic adjustment)
• Blade Overlap: 6"
• Cutting Capacity (Max): 1.5" diameter

Construction & Components

• Blade Carrier: Infinity
• Blades: 1/2" x 3"
• Deck Thickness:
• Center: 10 gauge bottom / 12 gauge top
• Wings: Double 12 gauge
• Side Skirt: 1/4" x 11.5"
• Hitch: Pull-type swivel
• Jack Stand: Standard
• Wing Flex: 88° up / 25° down
• Wing Lift Hydraulics: Standard

Gearbox & Power

• HP Required: 35 – 60 PTO hp
• Gearbox Rating:
• Power Divider: 160 hp
• Center & Wing: 65 hp
• Output Shaft Diameter: 1-9/16"
• Gearbox Oil: 85W-140 (Factory filled)
• Blade Tip Speed:
• Center: 14,504 FPM
• Wing: 13,925 FPM

Driveline & Protection

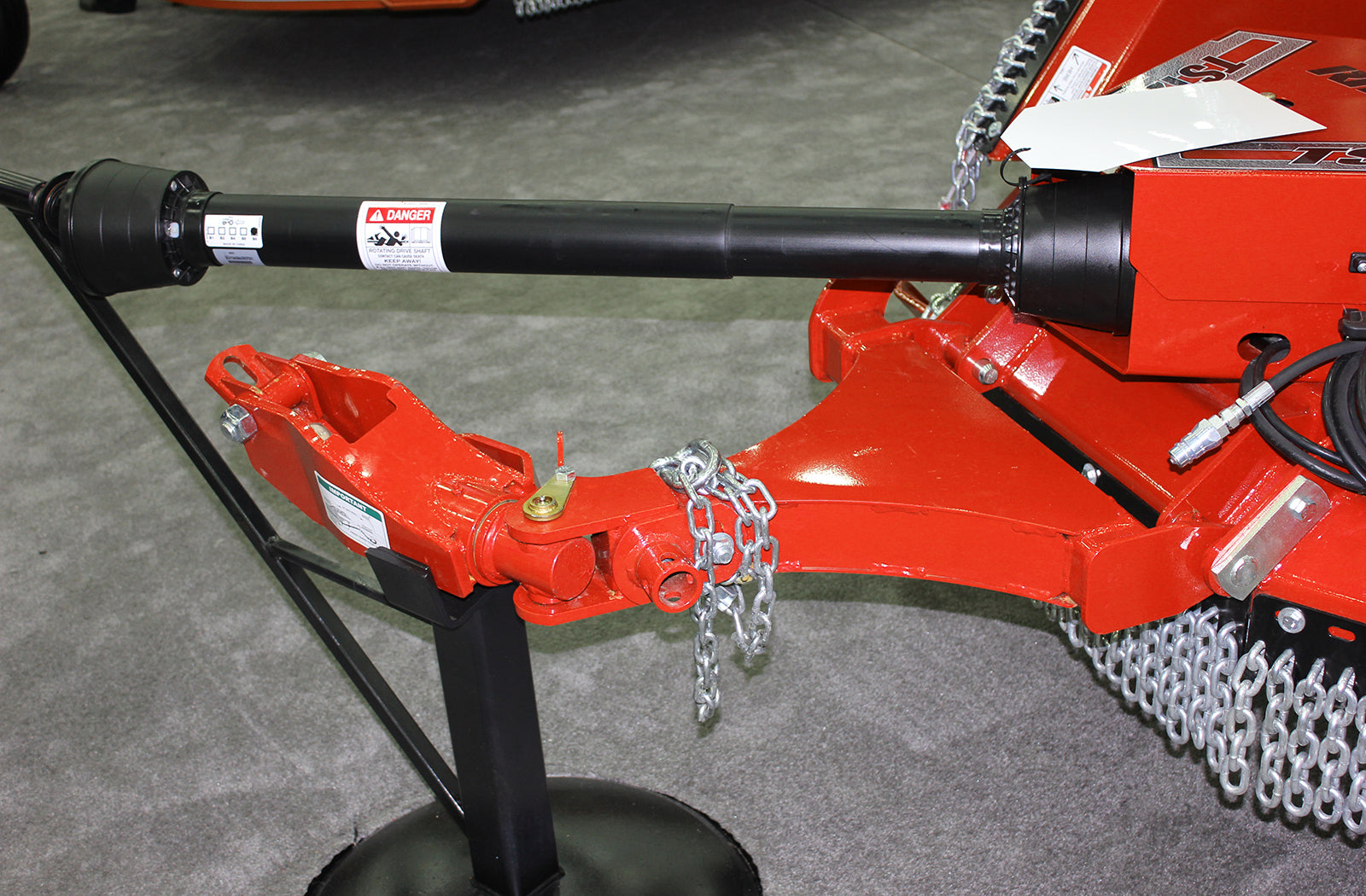

• Main Driveline: CAT 4 Equal Angle
• Wing Driveline: CAT 3
• Protection: Slip Clutch

Tires & Safety

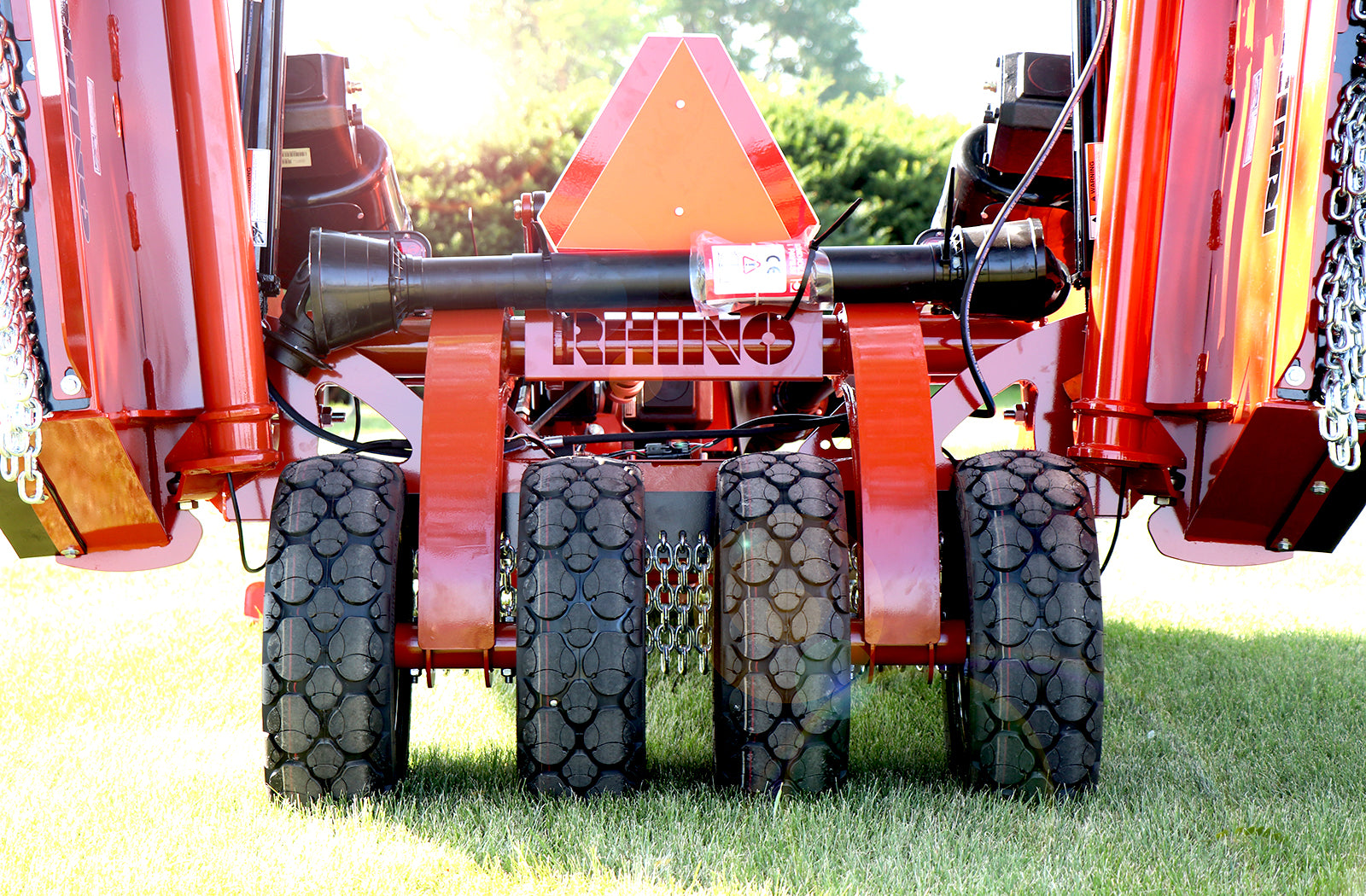

• Tires: (4 or 6) Foam-Filled Aircraft or Laminated
• Safety Tow Chain: Standard
• Safety Deflectors: Chain Guards
• LED Light Kit: Standard

Dimensions & Weight

• Wheelbase: 126.25"
• Tongue Weight: 748 lbs
• Weight (Approx.): 2,750 lbs
