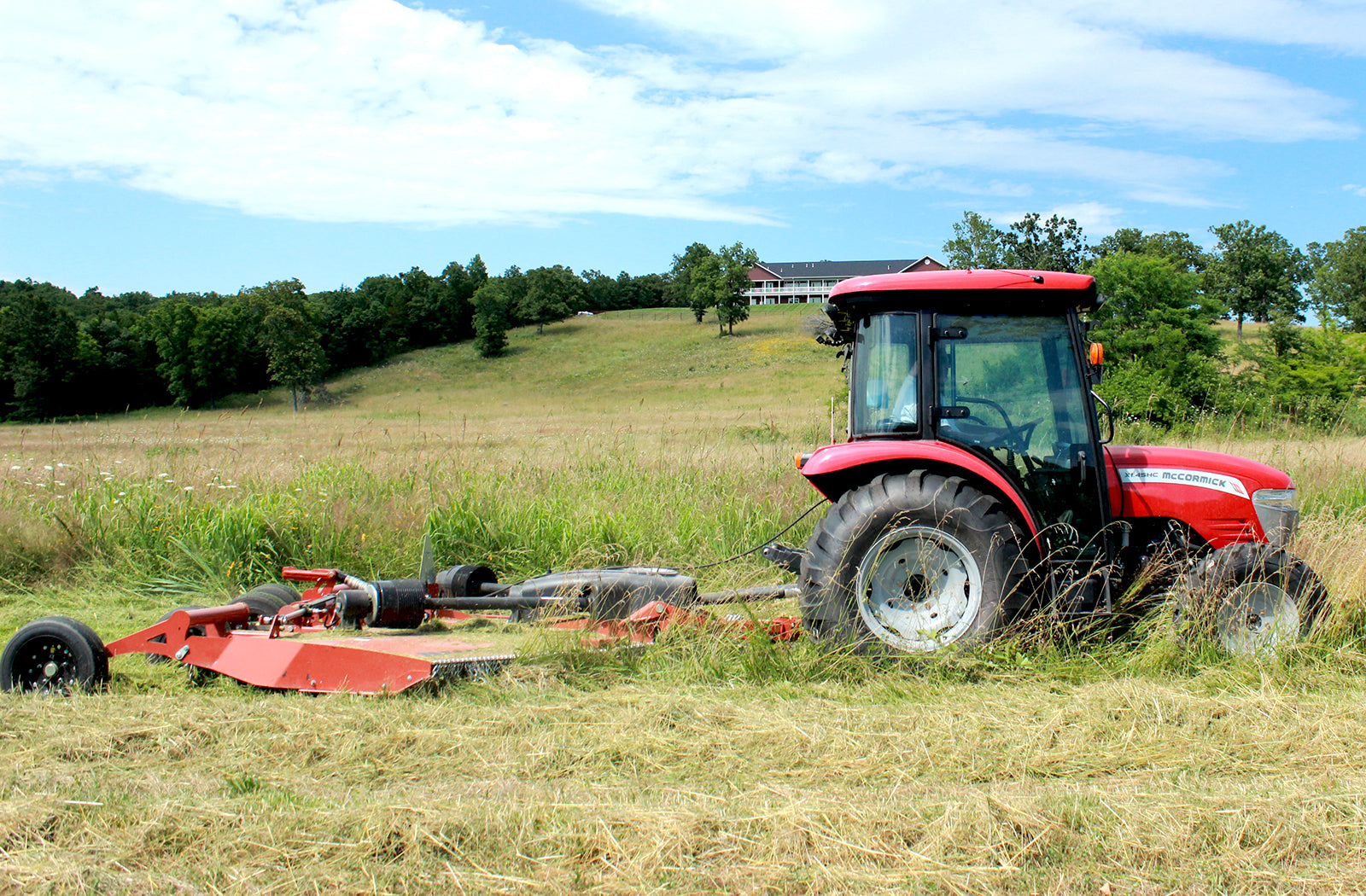

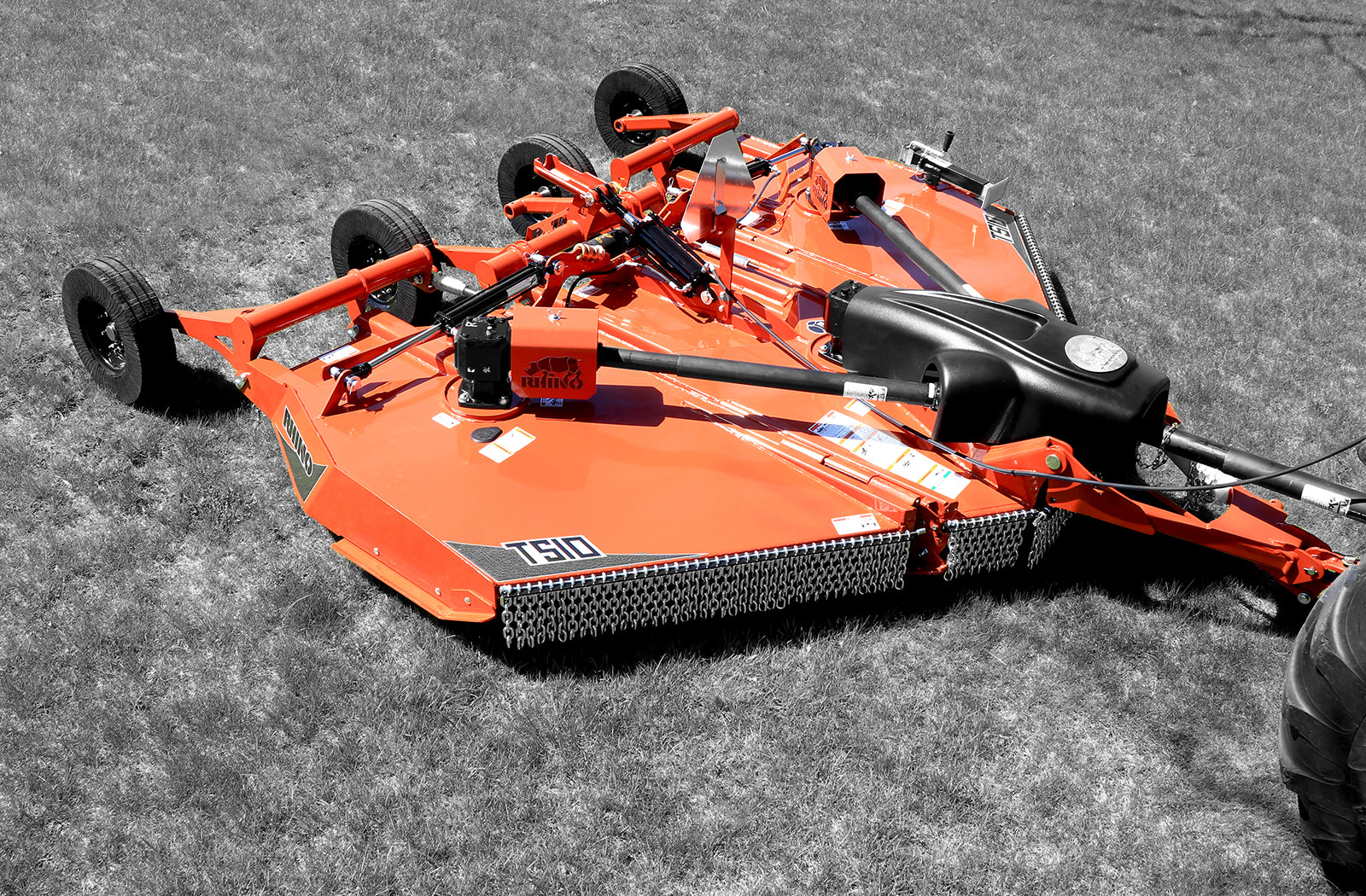

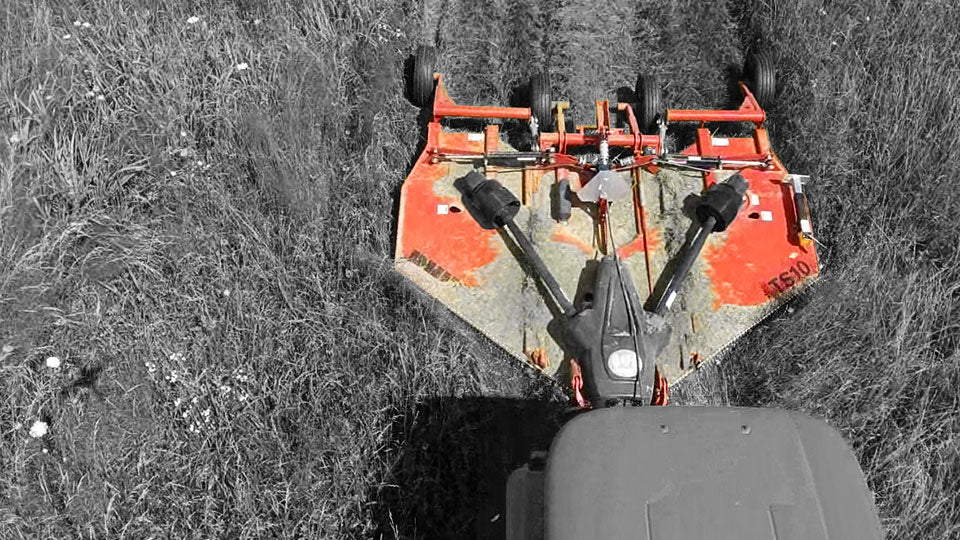

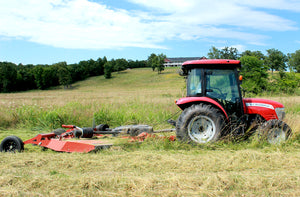

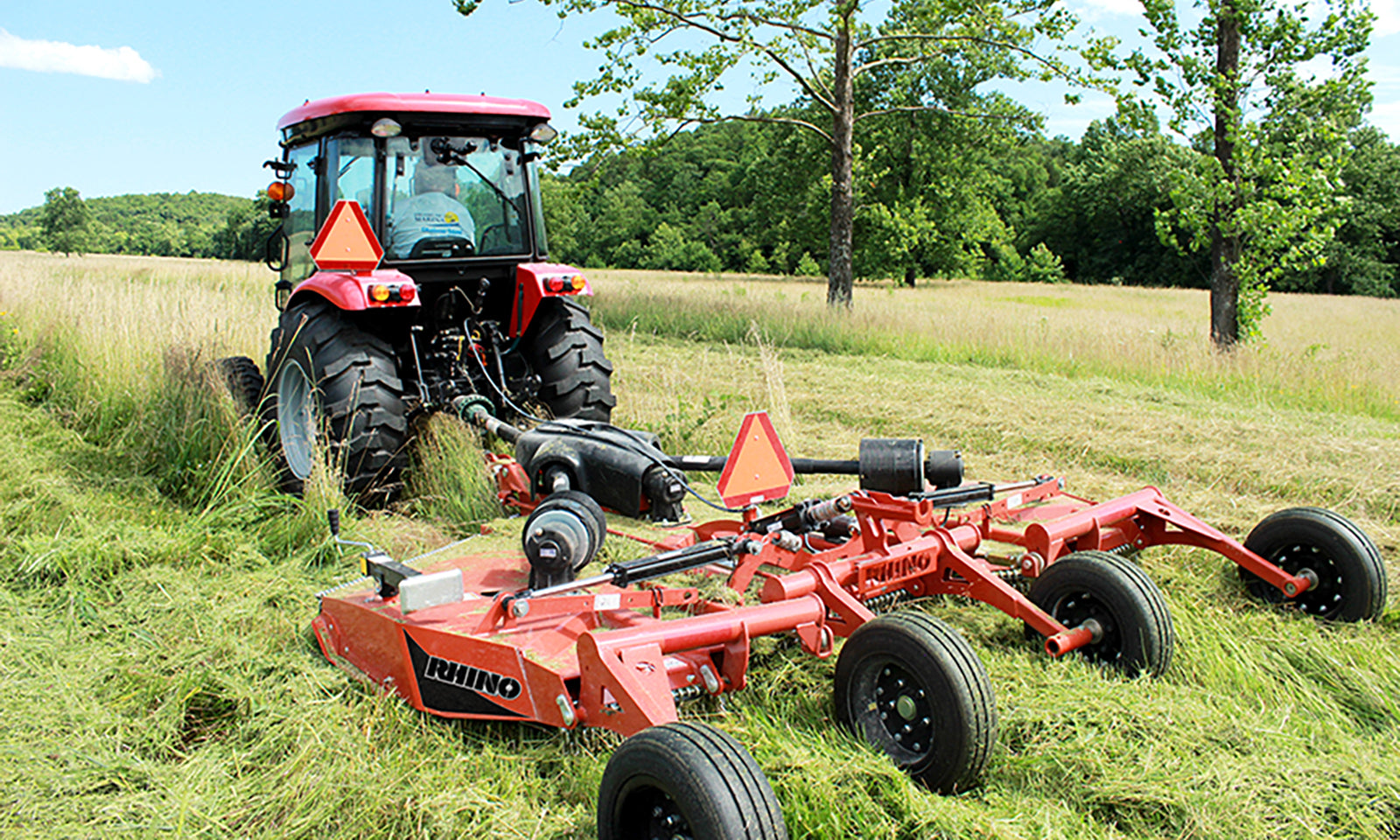

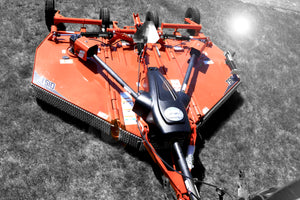

Description:

The TS10' is our latest and greatest and the baby of the Flex-Wing Family. Keeping the transport width at 93" makes this the perfect option for getting in to maintain those pastures. It has a 2" cut capacity and packs a pretty good punch for those compact tractors.

Don't let the small size of the TS10 deceive you - it's packing some seriously heavy-duty guts. With a 120" cutting width and 1/2" x 3" blades, the TS10 is prepared to take on brush up to a full 2" in diameter.

The Flex-Wing deck design lets you cut on rolling terrain without having to make multiple passes - something fixed-deck cutters can only dream of doing. And with a transport width of only 93", the TS10 can get practically anywhere: through gates as narrow as 8', easily into storage, and into the bed of your pickup truck.

Features:

• Fits through gates as narrow as 8'
• 2" cutting capacity
• Walterscheid EZ-Lock collar makes hookup easy
• Replaceable skid shoes
• Average mowing time of 4 MPH
• Heavy-duty turn buckles

Specifications:

Cutting System

• Cutting Width: 120'' (10 ft)
• Cutting Height: 1'' – 15''
• Cutting Capacity: 2''
• Blade Carrier: Infinity - Steel
• Blades: 1/2'' x 3'' High Lift
• Blade Overlap: 6''
• Blade Tip Speed (540 RPM):
• Center: 13,028 FPM
• Wing: 13,680 FPM

Dimensions

• Transport Width: 93''
• Transport Height: 68''
• Overall Width: 126''
• Overall Length: 162''
• Deck Thickness: 12 Ga
• Side Skirt: 1/4'' x 10''

Driveline & Hitch

• Hitch: Pull Type, Parallel Clevis
• Tractor PTO HP Range: 25 – 60 HP
• Gearbox Rating:
• Power Divider: 160 HP
• Center & Wing: 65 HP
• Driveline Protection: Slip Clutch
• Driveline ASABE:
• Main: CAT 4 CV
• Wing: CAT 3 SC
• Gearbox Oil: 85W-140 (Factory Filled Lucas Oil)
• Output Shaft Diameter: 1 9/16''

Wheels & Tires

• Tires & Wheels (4 or 6): Laminated, Foam-Filled Used Airplane, or Rhino Trax Foam-Filled

Hydraulics

• Height Adjustment: 3 1/2'' x 8'' Hydraulic Cylinder
• Wing Lift: 2'' x 14'' Hydraulic Cylinder
• Wing Flex Range: 90° Up / 22° Down

Safety & Extras

• Jack Stand: Standard
• Safety Tow Chain: Standard
• Safety Deflectors: Rubber Deflectors or Single Chain Guards

Weight

• Tongue Weight: 720 lbs
• Approximate Overall Weight: 2,190 lbs
