Description:

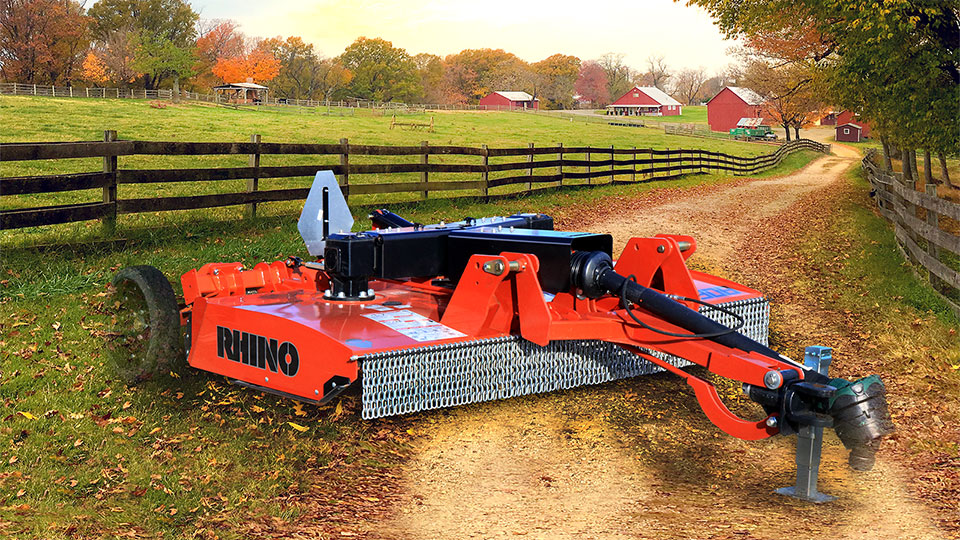

The robust TR Series is the latest addition to RhinoAg’s already-impressive lineup of multi-spindle cutters. These rugged cutters offer superior cut quality, easier maintenance, and longer life expectancy to give you the years of dependable service you’ve come to expect from RhinoAg.

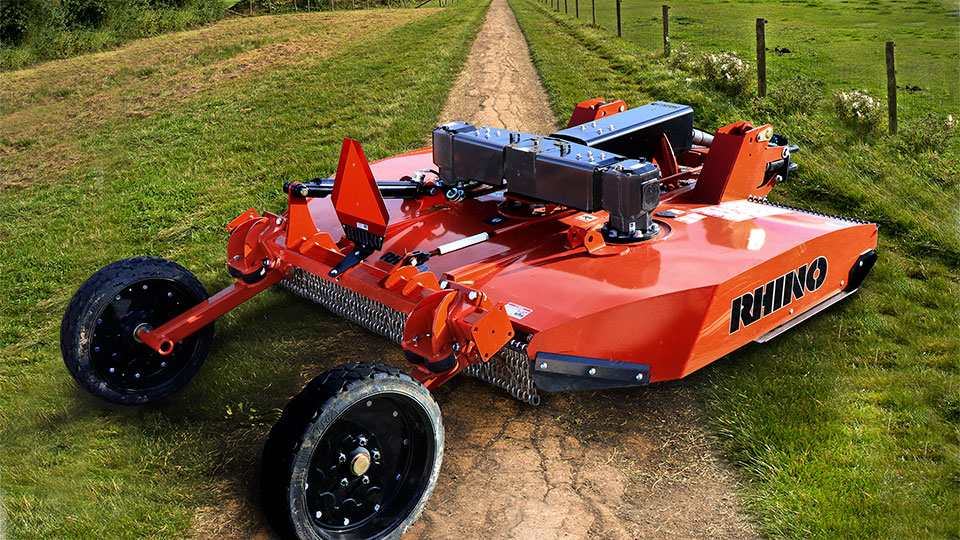

The 300 pull types feature a rigid-deck suspension system that creates a more even cut and offers longer part life due to reduced impact load on critical components. As heavier units, the TR308 and TR310 need this independent axle suspension to help reduce the hard, continuous impacts that cutters see out in the field daily.

Features:

• Clean, modernized deck design for easy cleaning and maintenance
• CV drivelines on all pull-type units
• CAT 2 & 3 hitch compatible
• Slip clutch driveline protection

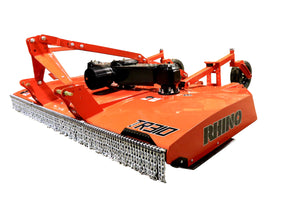

• EZ cutting boxes on every unit; EZ160 divider box and EZ160 cutting box on the TR310

Specifications:

Cutting

• Cutting Width: 8' (96")
• Cutting Height: 1" – 15"
• Blade Carrier: Infinity – Steel
• Blades: 1/2" x 4" Parallel
• Blade Overlap: 4"
• Cutting Capacity (Max): 3"
• Blade Tip Speed:
• 540 RPM: 16,512 FPM
• 1000 RPM: 16,378 FPM

Dimensions

• Overall Width: 103"
• Overall Length:
• Lift: 94.5"
• Semi-Mount: 97.5"
• Pull Type: 143"

Driveline & Gearbox

• HP Required:
• Lift: 55 HP
• Pull/Semi: 35 HP
• Gearbox Rating:
• Center: 100 HP
• Outboard: 130 HP
• Gearbox Oil: 85W-140 (Factory filled with Lucas Oil)
• Output Shaft Diameter: 2" (50mm)
• Driveline Size:
• CAT 4 – Lift/Semi
• CAT 5 – Pull
• Driveline Protection: Slip Clutch

Frame & Build

• Deck Thickness: 10 Gauge
• Side Skirt: 1/4"
• Hitch Type:
• CAT 2 / CAT 3 Std.
• CAT 2 / CAT 3 Quick Hitch
• Pull Type Compatible
• Height Adjustment: Cylinder – Pull/Semi
• Jack Stand: Standard (Pull)
• Tires & Wheels:
• Lift: Laminated
• Pull: Laminated or HD Rhino Trax
• Safety Tow Chain: Standard (Pull)
• Safety Deflector: Single or Double Chain Guards

Weight

• Lift Type: 1,950 lbs
• Pull Type: 2,350 lbs
• Tongue Weight (Pull): 1,020 lbs
