Description:

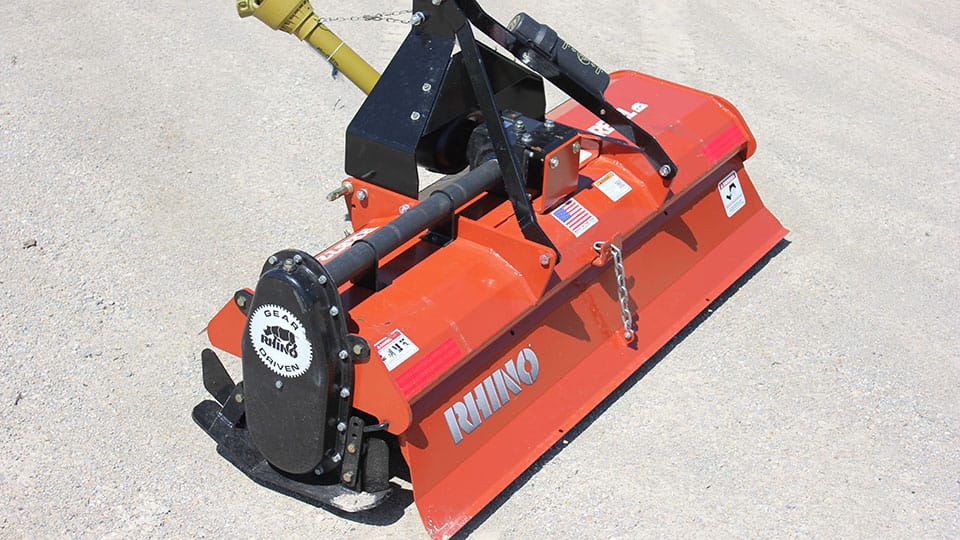

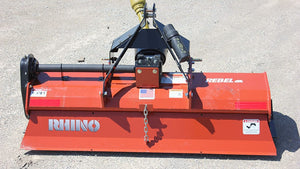

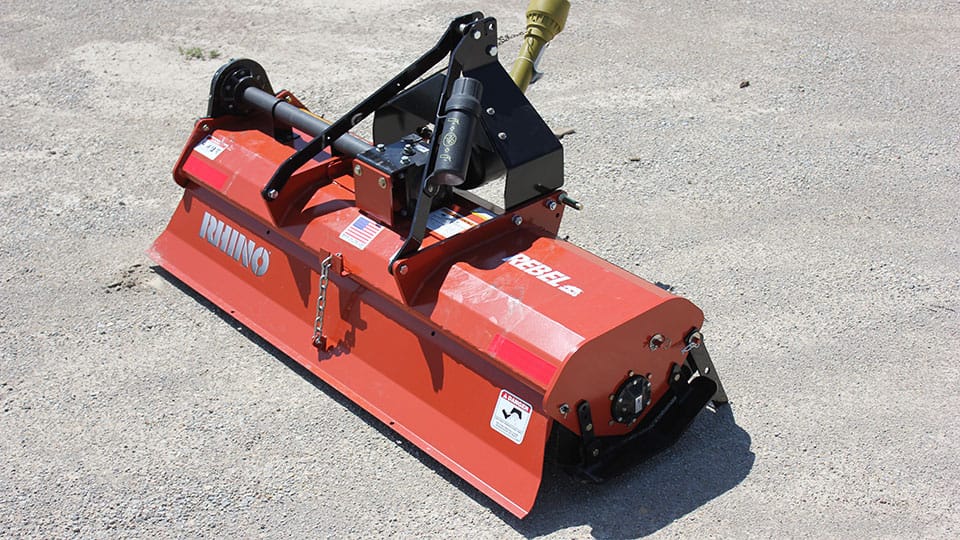

Rhino rotary tillers offer state-of-the-art design and superior features for unparalleled quality and performance in a number of applications.

Rhino’s Rebel Series tillers are built tough. Every size in this line is available in both forward and reverse tillage. Each rotor comes equipped with a hardened, “L” shaped blade. With hitches continuously welded to the mainframe, as well as slip-clutch protection on the drive train, repairs and downtime are sure to be rare!

Features:

• Six Hardened "L" Blades per Rotor Flange
• Cast Iron Gearbox Housing
• Front to Rear Hitch Points are Continuously Welded to the Mainframe
• Metal Debris Deflector (Reverse Model Only)
• CAT 1 Standard and QH (5 & 6 ft Model Only)
• CAT 1 & 2 Standard and QH (7 ft Model)
• Slip Clutch Driveline Protection Comes Standard
• 1/2" Steel End Plates

Specifications:

• Tilling Width: 59"
• Overall Width: 66"
• Tilling Depth (Max): 7-1/2"
• Hitch - Standard: CAT 1
• Hitch - Quick Hitch Compatible: CAT 1 QH
• Knife Type: “L”
• Number of Knives: 42
• Number of Flanges: 7
• Recommended PTO HP (Min/Max): 25 – 45 HP
• Rotor Speed: 211 RPM
• Driveline Size: CAT 4
• Driveline Protection: Slip Clutch
• Gearbox Housing: Cast
• End Plate Thickness: 1/2"
• Rotor/Blade Rotation Diameter: 17"
• Rotor Shaft Diameter: 3"
• Rotor Drive Type: Gear Driven
• Tine Rotation: Standard
• Weight (Approx.): 673 lbs
