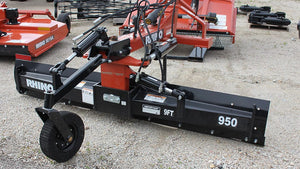

Description:

Rhino® has been manufacturing the leading line of tractor mounted blades for over 50 years. A Rhino blade means Rugged Durability, Superior Craftsmanship, Innovative Design, and Outstanding Performance. Whether you need to dig a ditch, repair a terrace, maintain a road, remove snow, clean a feed lot, or prepare a level surface, there is a Rhino blade right for you.

Features include heavy-duty three-point hitches, reinforced mainframes, massive solid steel kingpins, precisely-formed moldboards, and mainframe swing, moldboard angle, and moldboard tilt adjustments for rugged durability and outstanding performance. The 850, 950 and 1540 blades are available with either manual or hydraulic adjustments to help fit a wide range of applications and needs. The 2500 and 3500 blades feature all hydraulic adjustments for greater operator convenience. Rhino blades - unequaled Selection, Quality, and Performance!

Features:

• Heavy-Duty 3-Point Hitches
• Solid Steel Kingpins
• ½” x 6” Replaceable Cutting Edge
• Optional Skid Shoes
• Optional Gauge Wheels and Skid Shoes

Specifications:

Moldboard

• Available Widths: 8', 9'
• Dimensions: 3/8" x 17"
• Cutting Edge: 1/2" x 6", Reversible

Build & Hitch

• Support Stand: Standard
• Hitch Type: CAT 1 & 2 / CAT 1 & 2 Quick Hitch

Horsepower Requirements

• Max HP (2WD):
• 8' Blade: 125 hp
• 9' Blade: 95 hp
• Max HP (FWA):
• 8' Blade: 106 hp
• 9' Blade: 81 hp

Frame & Adjustment

• Kingpin Diameter: 3" Solid Steel
• Adjustment Types: Manual or Hydraulic
• Offset (Max): 30"
• Pivot (Forward/Reverse): Up to 45°
• Tilt (Up & Down): Up to 15°

Weight (Approximate)

• 8' Blade: 827 lbs
• 9' Blade: 876 lbs
