Description:

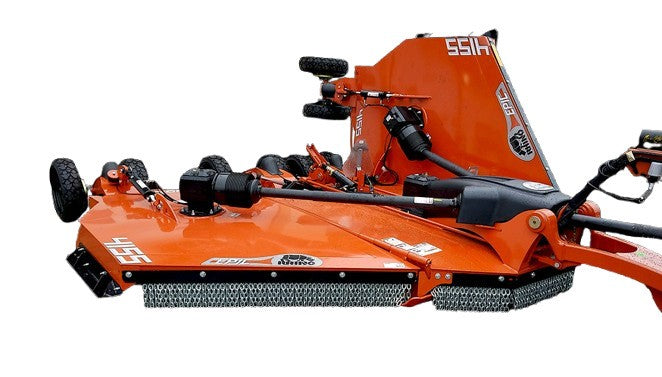

The Rhino 4000 “Epic” series rotary cutters boost the horsepower requirement to 60, getting the the ability to cut brush up to 4” in diameter! The stronger gearbox is tested up to 250 horsepower, while the whole unit is protected by a safety chain!

Couple that with slip-clutch protection and hydraulic wing-lift and you’ve got a monster rotary cutter not to be taken lightly!

And NEW to the lineup is our heavy-duty 12' model, the 4125! This flex-wing has the guts of a 4000 Series mower but in a completely redesigned 12' frame. Unique to the 4125 is the independent axle arm suspension. This reduces the stress of heavier material and higher hour workloads - which in turn leaves you with less downtime and maintenance.

With over three years of testing, we are confident this machine will be a staple for the heavy-duty workloads. And just like the 4105 and 4155, this model is available for government bid.

Features:

• 60 Horsepower PTO Requirement
• 250 Horsepower Gearbox (160 HP on 4125 model)
• Chain Guard Safety Deflectors
• 3 Optional Wheel Configurations (2 for 4125 model)

Specifications:

• Cutting Width: 12' 6"
• Transport Width: 101.9"
• Transport Height: 73.2"
• Overall Width: 156.5"
• Overall Length: 171.2"
• Cutting Height: 2" - 14"
• Self-Leveling Height Adjustment: Hydraulic Cylinder
• Jack Stand: Standard
• Hitch: Pull-type
• Blade Carrier: Infinity
• Blades: 1/2" x 4" Parallel Lift
• Blade Overlap: 6"
• PTO Horsepower Required: 50 HP
• Gearbox Rating (Divider): 160 HP
• Gearbox Rating (Center & Wing): 130 HP
• Gearbox Oil (85W-140): Factory Filled
• Output Shaft Diameter: 2"
• Blade Tip Speed (Center – 540 RPM): 14,504 FPM
• Blade Tip Speed (Wing – 540 RPM): 14,988 FPM
• Cutting Capacity (Diameter): 4"
• Driveline Size – Main: CAT 5 CV
• Driveline Size – Wing: CAT 4
• Driveline Protection: Slip Clutch
• Deck Thickness: 10 GA
• Side Skirt: 1/4" AR400
• Military Grade Steel: 1/4" AR400
• Tires & Wheels: RhinoTrax, Laminated
• Wing Lift Hydraulics: Standard
• Wing Flex (Transport): 90° Up / 25° Down
• Wing Flex (Operational): 45° Up / 25° Down
• Safety Tow Chain: Standard
• LED Light Kit: Standard
• Safety Deflectors: Single or Double Chain Guards
• Tongue Weight: 1,200 lbs
• Weight (Approx): 4,000 lbs
