Description:

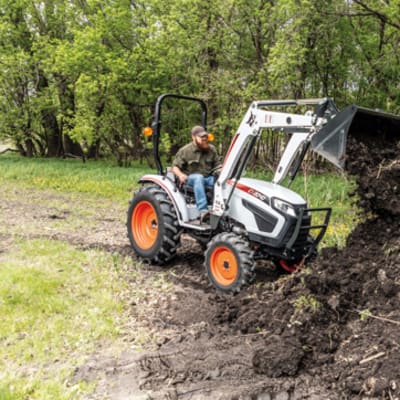

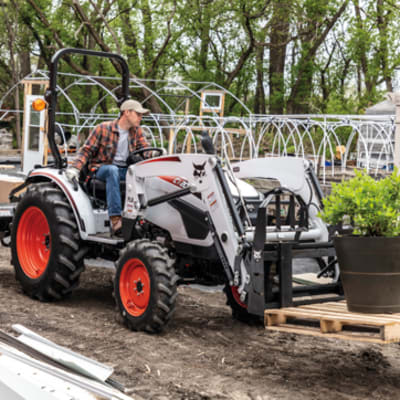

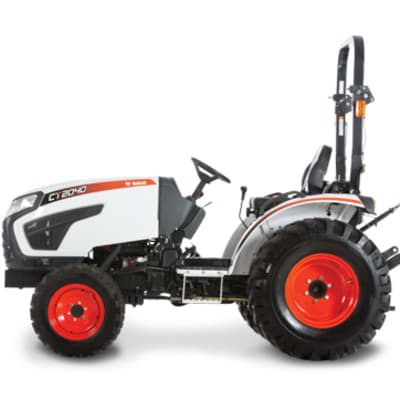

The CT2040 40-hp compact tractor fits in tight spaces without sacrificing the power to do heavy-duty attachment and implement work.

• Category 1 three-point hitch for using implements
• Manual-shift or hydrostatic transmission options
• Integrated loader joystick lever for intuitive controls and easier front-end loader work
• Standard rear PTO and optional mid-PTO

Specifications:

Model: CT2040 HST

Horsepower: 39.6 hp

Gross Horsepower: 39.6 hp

PTO Horsepower: 31.9 hp

Engine Model: 3H-TH4A

Cylinders: 3

Displacement: 111.4 cu in

Rated RPM: 2600

Performance

• Operating Weight: 3005 lbs
• Travel Speed (Forward): 14 mph
• Travel Speed (Reverse): 9.7 mph
• Lift Capacity @ 24" behind lift point: 1631 lbs
• 3-Point Lift Control: Hydraulic Position Control System
• Rear PTO: 540 rpm

Hydraulics

• Steering Flow: 4.5 gpm
• Implement Flow: 6.9 gpm
• Total Flow: 11.4 gpm

Capacities

• Fuel Tank: 9 gal

Dimensions

• Width: 62.4 in
• Ground Clearance: 11.7 in
• Wheelbase: 66 in
• Turning Radius: 8.4 ft
• Front Tire Size: 27x8.5-15
• Rear Tire Size: 15-19.5 (options: 11.2-24, 41x14-20)

Drive System

• Transmission: Infinite, 3-Range Hydrostatic
• Brake Type: Wet Multi Disc
