Description:

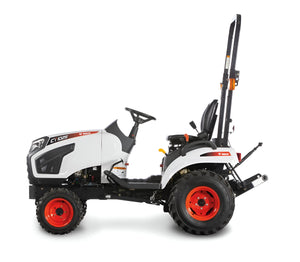

The Bobcat® CT1025 packs a lot of power into a small frame size to efficiently mow and maintain your small acreage. This sub-compact, 25-hp diesel tractor is larger than lawn and garden tractors and includes a hydrostatic transmission, four-wheel drive and a Category 1 3-point hitch. It’s easy to operate and the perfect solution for light-duty projects around your property.

Specifications:

Engine:

• Model: CT1025H Compact Tractor
• Gross Horsepower: 24.5 hp
• Number of Cylinders: 3
• Total Displacement: 1007 cc
• Fuel Tank Capacity: 25.5 L

PTO & Hydraulics:

• PTO Horsepower: 20.5 hp
• Average PTO Horsepower: 20.5 hp
• 3-Point Hitch: Category 1
• Lift Control Type: Hydraulic Position Control System
• Hydraulic Lift Capacity at 24 in. Beyond Lift Point: 318 kgf
• Rear PTO RPM: 540 rpm
• Rear PTO System: Independent
• Mid-PTO RPM: Standard: 2200 rpm
• Total Hydraulic Pump Capacity: 25.7 L/min
• Rear Hydraulics: Optional (2)
• Lower Links: Ball
• Lifting Rod: Turn-buckle

Drive System:

• Travel Speeds (with Industrial Tires)
• Overall Length (with 3 pt.): 2523 mm
• Overall Width (with industrial tires): 1168 mm
• Overall Height (with ROPS): 2226 mm
• Wheelbase: 1400 mm
• Ground Clearance: 162 mm
• Weight: 690 kg
