Description:

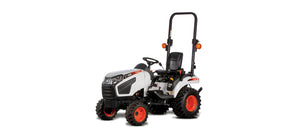

The 21-hp CT1021 sub-compact tractor with four-wheel drive and clutch-free 2-range hydrostatic transmission easily maneuvers around buildings.

Features:

• Compact 46-inch width
• Limited Category 1 three-point hitch for using implements
• Rear and mid-PTO

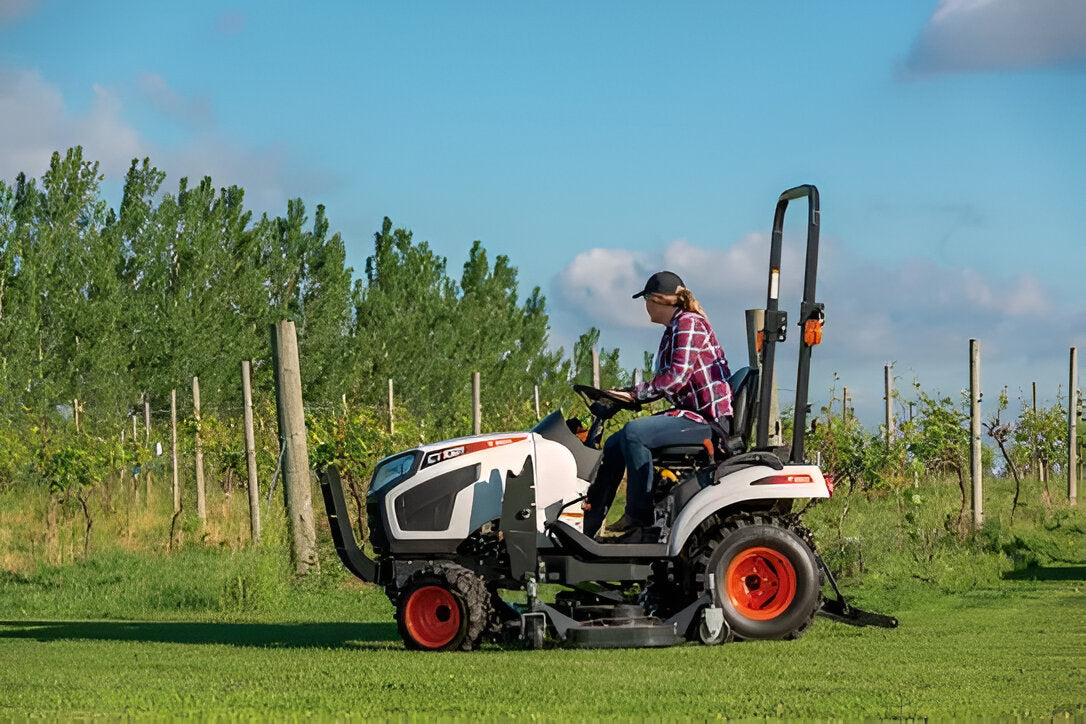

• This sub-compact tractor is a step up from lawn and garden tractors, but still compact enough to maneuver around barns, sheds and landscaping, making it perfect for mowing and managing a variety of projects around your small acreage.
• Mid-PTO provides the option of combining two tools on one machine – one in the back and either one in the front or a mid-mount mower.
• Rear PTO and Limited Category 1 three-point hitch allow the versatility to use both drag-behind and PTO-powered implements.
• Engage four-wheel drive for hard-working traction when your work demands it.

Specifications:

Engine

• Horsepower: 21 hp
• Displacement: 62 in³
• Number of Cylinders: 3
• Gross HP: 21 hp
• Engine Model: 3C100LWH-U2
• Emissions Tier (EPA): Tier 4

Performance

• Operating Weight: 1,521 lbs
• Travel Speed: 11 mph
• Travel Speed - Reverse: 7.5 mph
• 3-Point Hitch: Category 1
• 3-pt Lift Control Type: Hydraulic Position Control System
• Lift Capacity at 24" behind Lift Point: 700 lbs
• Rear PTO System: Independent
• Rear PTO - RPM: 540
• PTO HP: 16.3 hp
• Mid PTO - RPM: 2200

Transmission

• Type: Infinite, 2 Range Hydrostatic

Capacities

• Fuel Tank: 6.7 gal

Hydraulic System

• Implement Hydraulic Flow: 4.6 gal/min
• Total Hydraulic Flow: 6.4 gal/min
• Steering Hydraulic Flow: 1.8 gal/min

Dimensions

• Length: 99.3 in
• Width: 45.7 in
• Height: 87.6 in
• Ground Clearance: 6.3 in
• Turning Radius: 8' 3"
• Wheelbase: 4' 7"
• Front Tire Size: 18X8.5-10 (AG, Turf)
• Rear Tire Size: 26X12-12 (AG, Turf)

Loader Attachment

• Loader Lift Height: 6' 0"
• Lift Capacity at Bucket Pivot: 608 lbs
• Bucket Width: 4' 0"
