Description:

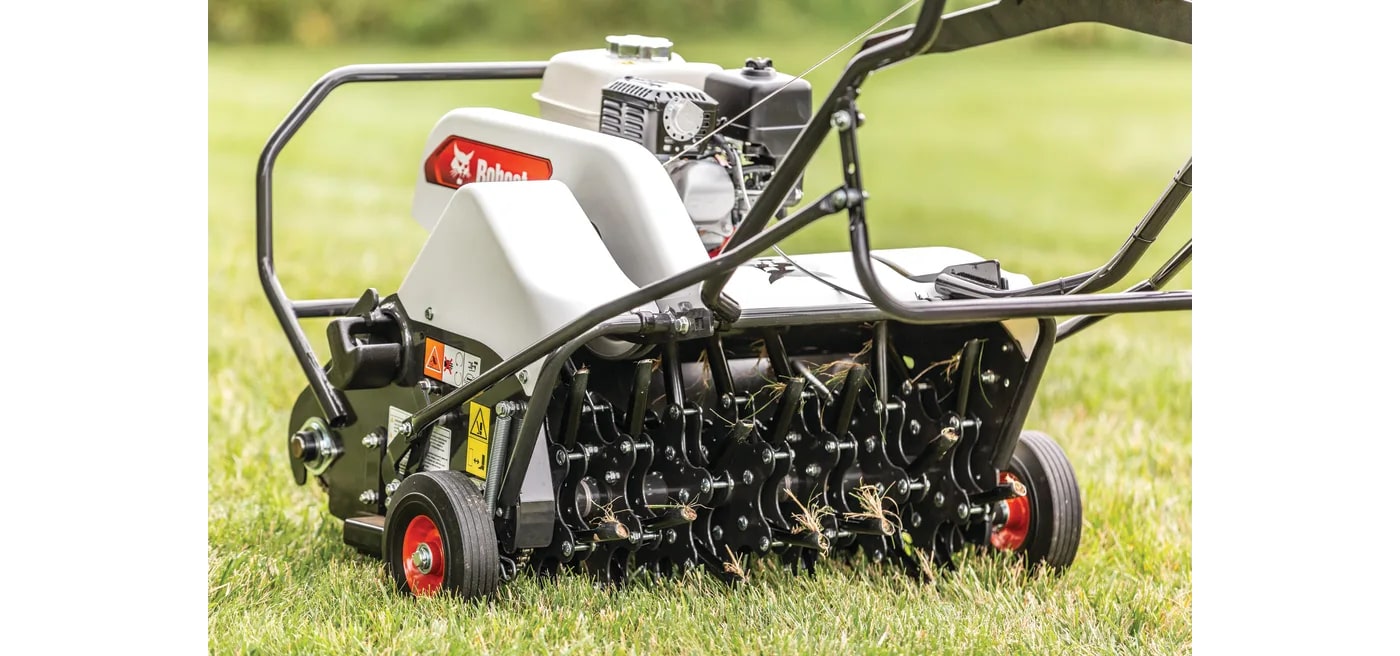

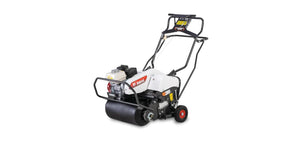

Packed with features, the Bobcat AE26 is a formidable machine that can aerate up to 40,000 sq ft/hr. Easy-Steer allows the unit to maneuver around highly landscaped areas fast and efficiently. Designed to rotate independently while driving, the tine assemblies allow you to steer without removing the tines from the ground.

The AE26 boasts durable hardened steel alloy tines and a protective front bumper guard, ensuring enhanced durability. Moreover, its adjustable weight distribution system and bolted folding handle significantly improve ease of lifting and transportation.

Features:

The Bobcat® AE26 aerator is durable, efficient, and easy to use. Adapt to the job with versatile features and get it done through durable performance.

• 26.5 in. working width
• 42 hardened alloy steel tines
• All operating controls located at the handlebar for convenient and easy operation
• Equipped with Easy-Steer technology
• Bolted folding handle allows aerator to compact for hassle-free storage and transport

Specification:

Engine

• Engine Model: Honda GX120
• Engine Displacement: 7.2 in³
• Horsepower: 3.2 hp
• Fuel Capacity: 0.53 gal

Performance

• Maximum Productivity: 3753 m²/h
• Weight: 290 lb
• Weight (Water in Drum): 344 lb

Dimensions

• Length: 53.5 in
• Width: 35.5 in
• Height: 48.5 in

Frame

• Frame: Welded 7-gauge steel; 11-gauge steel tubing

Wheels

• Front Tire(s): (1) 11 in water-fillable drum
• Rear Tire(s): (2) 8 in x 2.25 in semi-pneumatic transport wheels

Aeration

• Tine Type: 0.75 in (19 mm) formed from 0.08 in (2 mm) hardened chrome molybdenum alloy steel
• Aeration Width: 26.5 in
• Maximum Aeration Depth: 2.8 in
• Aeration Pattern: 3.75 in x 7 in (95 mm x 178 mm)
• Tine Engagement: Transport lift lever

Drive

• Drive System: 4L section V-Belt to jackshaft; #40 nickel-plated chain to tines & drum
• Clutch: Belt tightener
• Gearbox: 6:1 reduction
• Max Aeration Speed: 3.5 mph
• Max Travel Speed: 3.6 mph
