Description:

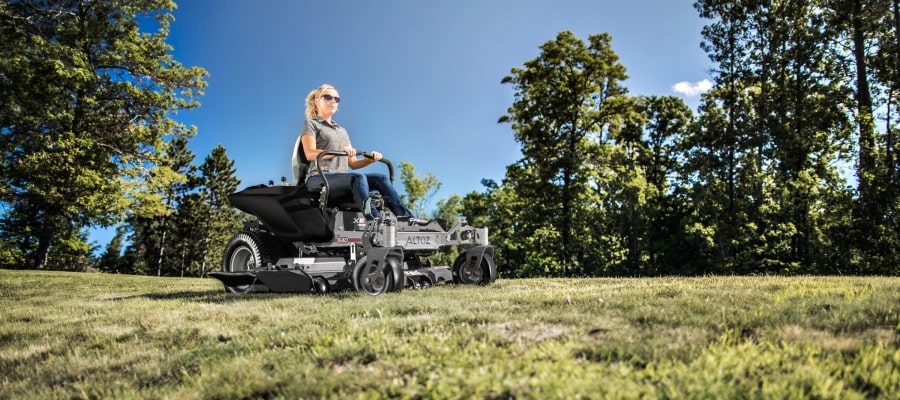

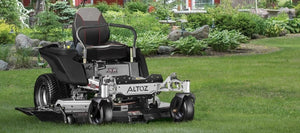

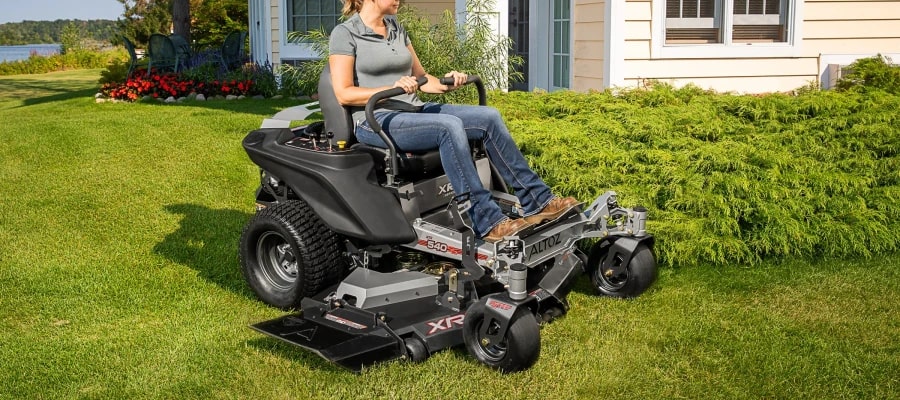

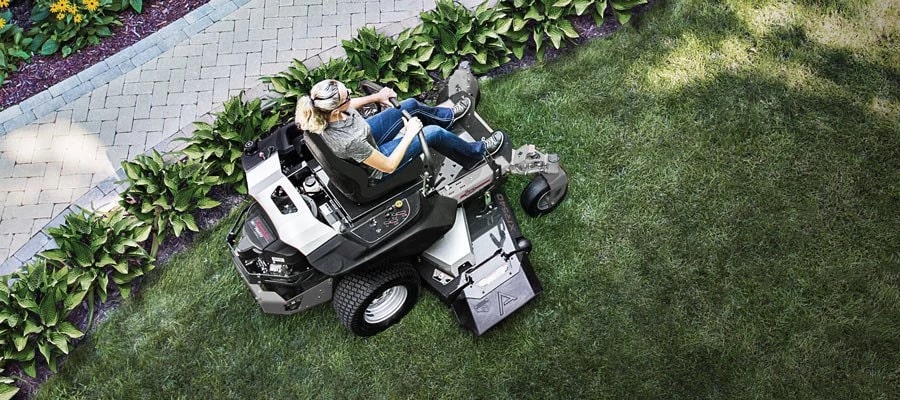

The Altoz XR brings the power and precision of commercial mowers to you. This is simply the hardest working residential zero turn mower for those who need a mower that delivers all the results, with none of the compromises.

A mower for discerning homeowners who take as much pride in their equipment as they do in a job well done. With its laser-cut steel chassis, fabricated cutting deck and heat dissipating deck spindles, the Altoz XR is engineered to professional-grade standards.

Specifications:

Engine

• Horsepower: 23 hp
• Manufacturer: Kawasaki
• Model: FR
• Displacement: 726 cc
• Cylinders: 2
• Air Filter: Single Stage
• Fuel: Gasoline
• Fuel Capacity: 5 gallons

Drive Line

• Transmission Type: Hydrostatic
• Transmission Manufacturer: Hydro-Gear
• Transmission Model: ZT-3100
• Max Forward Speed: 8 mph
• Front Tire Size: 13"
• Rear Tire Size: 20"

Features

• Seat Suspension
• Seat Adjustment: Fore and Aft
• Cup Holder
• Fuel Gauge
• Digital Hour Meter

Dimensions / Weight

• Length: 80"
• Width (Chute Up): 49"
• Weight: 800 lbs / 820 lbs / 830 lbs
• Height: 49"

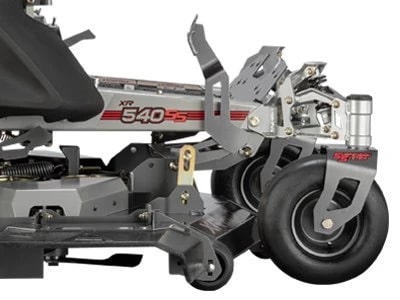

Cutting Deck

• Cutting Width: 48" / 54" / 54"
• Deck Type: Fabricated Steel
• Deck Thickness: Laminated 10 and 10 Gauge
• Deck Depth: 4.5"
• Cut Height (Min - Max): 1.5" - 4.25"
• Cutting Height Steps: 1/4" Increments
• Number of Blades: 3
• Blade Speed: 18,500 fpm
• Anti-Scalp Wheels: 4 Recessed
• Deck Lifting System: Foot Pedal
• Clutch Torque: 125 ft-lbs
• Clutch Manufacturer: Warner

Warranty

• Homeowner / Commercial: 3 years / 400 hours (first 12 months, no hour limitation)
• Rental: N/A
