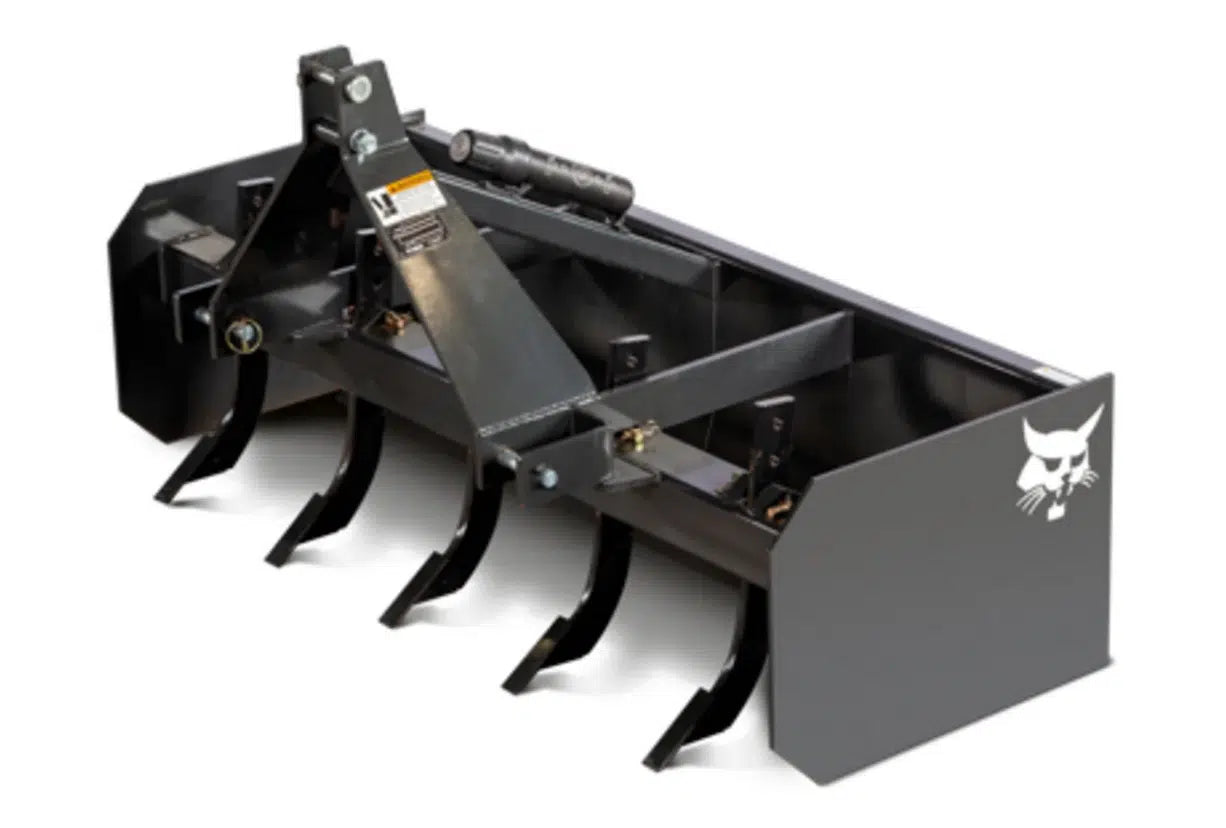

72″ 3PT BOX BLADE 7365527

Bobcat 72″ 3PT BOX BLADE 7365527 Attachment for Compact Tractors. The box blade for tractors grades, levels and backfills uneven roads, driveways, gardens or areas around barns and buildings. *Collects gravel to level ruts and potholes. *Cleans up and levels mulch piles.

*Clears material out of barns. *Creates gravel roads or driveways. The box blade implement does not require PTO. Simply attach it to the 3-point hitch and get started. The implement can be raised or lowered to control the height of the cutting edge. Lower the cutting edge to cut, and raise it to dump the material. Fit’s Bobcat Tractors Ct2025 and Up. Features & Benefits (Standard Box Blade) Trimble Grading System Compatible The standard box blade is compatible with Trimble systems used on current Bobcat equipment.

Box-End Wings The box-end wings help to carry more when spreading fine materials such as sand or gravel. Adjustable and replaceable bottom edges included. Fingertip Controls Raise and lower the blade from the comfort of the cab, providing smooth controls for precise grading. Foam-Filled Tires Designed for increased uptime protection, the tires are filled with foam for guaranteed no flats. They also add flotation, keeping the box blade moving smoothly over the work area. Top Tasks Standard Box Blade Rough grading and landscaping Fill in low spots Carry materials along to bring the surface close to grade HD Box Blade Fine and precise grading for flatwork applications How It Works Standard Box Blade The front bolster on the box blade can be raised or lowered to control the height of the cutting edge. Lower the cutting edge to cut and raise it to dump the material.

HD Box Blade The HD Box Blade is compatible with a laser grading system that can be used to control the height of the bolster and cutting edge. Operating Weight 1384 lb 1020 lb Length 64.3 in 64.3 in Width 85.5 in 85.5 in Height 32 in 32 in Box Blade Moldboard Width 84 in 84 in Moldboard Cutting Edge Reversible Width 0.5 in 0.5 in Moldboard Cutting Edge Reversible Height 6 in 6 in Box Blade Grade Accuracy with Laser +/- 0.25 inch
